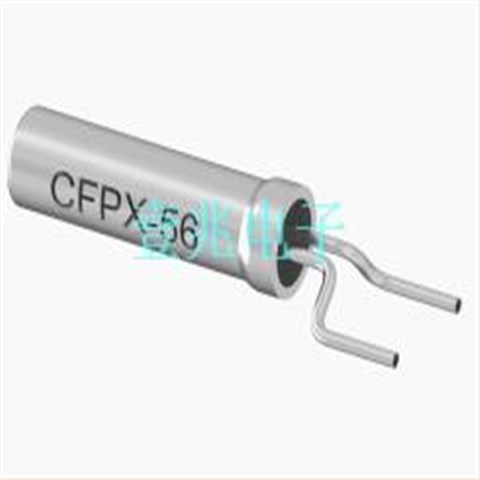

LFXTAL025159REEL石英晶体,CFPX-56两脚插件晶振,

LFXTAL025159REEL石英晶体,CFPX-56两脚插件晶振，编码：LFXTAL025159REEL，型号：CFPX-56，工作温度：-40℃ ~ 85°C，尺寸：1.8mm*6.0mm，频率：32.768 kHz，精度：±20ppm，负载电容：12.5pF，英国进口晶振，IQD石英晶体谐振器，石英晶振，贴片晶振，32.768贴片晶振，2x 6毫米手表水晶，带预成型支脚，用于制作SMD 包裹。适合实时时钟应用，智能手机，智能手表，工业设备，车载设备，网络设备，无线电话，无线通信，计算机等应用。

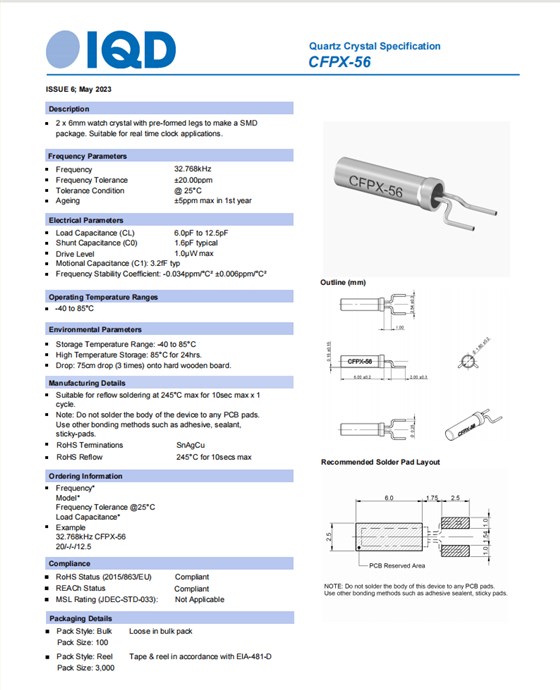

LFXTAL025159REEL石英晶体,CFPX-56两脚插件晶振，参数表

编码	LFXTAL025159REEL
品牌	IQD
型号	CFPX-56
频率	32.768 kHz
精度	±20ppm
负载电容	12.5pF
工作温度	-40℃ ~ 85°C
尺寸	1.8mm*6.0mm

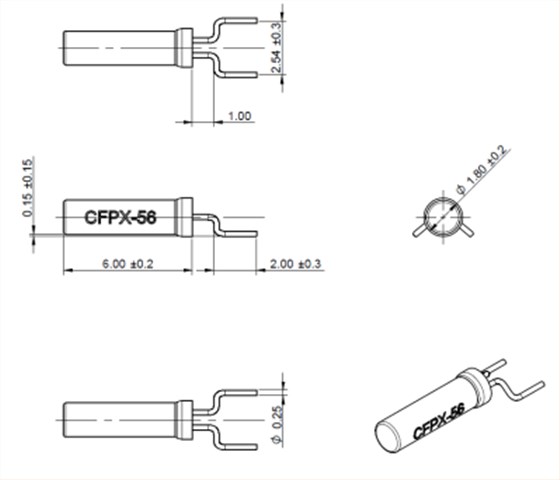

LFXTAL025159REEL石英晶体,CFPX-56两脚插件晶振，尺寸图

Mfr Part #	贴片石英晶体	Series	Frequency	Frequency Tolerance	Load Capacitance	Operating Temperature
LFXTAL069395RL3K	IQD Frequency Products	CFPX-218	16.384 MHz	±20ppm	10pF	-40°C ~ 85°C
LFXTAL025159REEL	IQD Frequency Products	CFPX-56	32.768 kHz	±20ppm	12.5pF	-40°C ~ 85°C
LFXTAL069383REEL	IQD Frequency Products	CFPX-218	24 MHz	±20ppm	10pF	-40°C ~ 85°C
LFXTAL063334REEL	IQD Frequency Products	CFPX-218	25 MHz	±20ppm	10pF	-40°C ~ 85°C
LFXTAL069405REEL	IQD Frequency Products	CFPX-218	27 MHz	±20ppm	18pF	-40°C ~ 85°C
LFXTAL069392REEL	IQD Frequency Products	CFPX-218	16 MHz	±20ppm	10pF	-40°C ~ 85°C
LFXTAL068297REEL	IQD Frequency Products	CFPX-218	16 MHz	±10ppm	8pF	-20°C ~ 75°C
LFXTAL069407REEL	IQD Frequency Products	CFPX-218	30 MHz	±20ppm	10pF	-40°C ~ 85°C
LFXTAL082082CUTT	IQD Frequency Products	CFPX-218	24 MHz	±10ppm	10pF	-20°C ~ 70°C
LFXTAL069381REEL	IQD Frequency Products	CFPX-218	20 MHz	±20ppm	10pF	-40°C ~ 85°C
LFXTAL071952RL3K	IQD Frequency Products	CFPX-218	12 MHz	±20ppm	10pF	-40°C ~ 85°C
LFXTAL025159BULK	IQD Frequency Products	CFPX-56	32.768 kHz	±20ppm	12.5pF	-40°C ~ 85°C
LFXTAL081865RL3K	IQD Frequency Products	CFPX-218	26 MHz	±10ppm	10pF	-20°C ~ 70°C
LFXTAL082080RL3K	IQD Frequency Products	CFPX-218	19.2 MHz	±10ppm	10pF	-20°C ~ 70°C
LFXTAL078207RL3K	IQD Frequency Products	CFPX-218	32 MHz	±10ppm	10pF	-20°C ~ 70°C
LFXTAL072844RL3K	IQD Frequency Products	CFPX-218	30 MHz	±10ppm	10pF	-20°C ~ 70°C
LFXTAL082084RL3K	IQD Frequency Products	CFPX-218	-	±10ppm	10pF	-20°C ~ 70°C
LFXTAL082081RL3K	IQD Frequency Products	CFPX-218	-	±10ppm	10pF	-20°C ~ 70°C
LFXTAL078719RL3K	IQD Frequency Products	CFPX-218	-	±10ppm	10pF	-20°C ~ 70°C
LFXTAL082082RL3K	IQD Frequency Products	CFPX-218	24 MHz	±10ppm	10pF	-20°C ~ 70°C
LFXTAL082087RL3K	IQD Frequency Products	CFPX-218	40 MHz	±10ppm	10pF	-20°C ~ 70°C
LFXTAL082088RL3K	IQD Frequency Products	CFPX-218	50 MHz	±10ppm	10pF	-20°C ~ 70°C
LFXTAL069400REEL	IQD Frequency Products	CFPX-218	18.432 MHz	±20ppm	18pF	-40°C ~ 85°C
LFXTAL050991REEL	IQD Frequency Products	CFPX-218	26 MHz	±20ppm	10pF	-40°C ~ 85°C
LFXTAL069387REEL	IQD Frequency Products	CFPX-218	24.576 MHz	±20ppm	10pF	-40°C ~ 85°C
LFXTAL069390REEL	IQD Frequency Products	CFPX-218	32 MHz	±20ppm	10pF	-40°C ~ 85°C
LFXTAL069404REEL	IQD Frequency Products	CFPX-218	19.2 MHz	±20ppm	10pF	-40°C ~ 85°C
LFXTAL071952REEL	IQD Frequency Products	CFPX-218	12 MHz	±20ppm	10pF	-40°C ~ 85°C
LFXTAL082084CUTT	IQD Frequency Products	CFPX-218	27 MHz	±10ppm	10pF	-20°C ~ 70°C
LFXTAL082087CUTT	IQD Frequency Products	CFPX-218	40 MHz	±10ppm	10pF	-20°C ~ 70°C
LFXTAL082081CUTT	IQD Frequency Products	CFPX-218	20 MHz	±10ppm	10pF	-20°C ~ 70°C
LFXTAL078207REEL	IQD Frequency Products	CFPX-218	32 MHz	±10ppm	10pF	-20°C ~ 70°C
