LFXTAL066198REEL,1610石英晶体谐振器,IQXC-90贴片晶体

LFXTAL066198REEL,1610石英晶体谐振器,IQXC-90贴片晶体，编码：LFXTAL066198REEL，型号：IQXC-90，工作温度：-40℃ ~ 85°C，尺寸：1.6mm*1.0mm，频率：32.768 kHz，精度：±20ppm，负载电容：9pF，贴片无源晶振，英国进口晶振，石英晶体谐振器，贴片晶体，石英晶振，石英晶体晶振，IQD晶振，密封陶瓷中的1.6 x 1.0mm毫米SMD晶体，包裹，适合实时时钟应用，GPS，手机导航，无线电话，无线局域网，网络设备，计算机等应用。

LFXTAL066198REEL,1610石英晶体谐振器,IQXC-90贴片晶体，参数表

编码	LFXTAL066198REEL
品牌	IQD
型号	IQXC-90
频率	32.768 kHz
精度	±20ppm
负载电容	9pF
工作温度	-40℃ ~ 85°C
尺寸	1.6mm*1.0mm

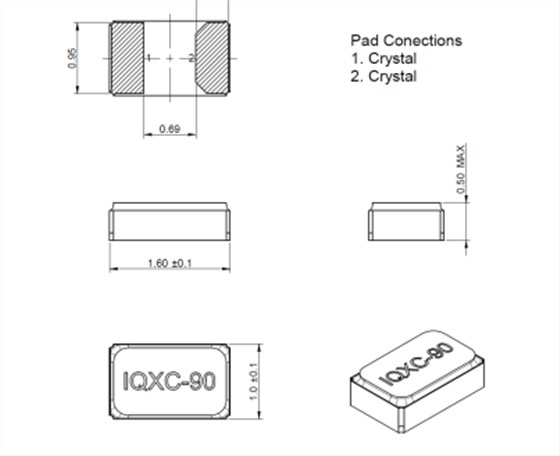

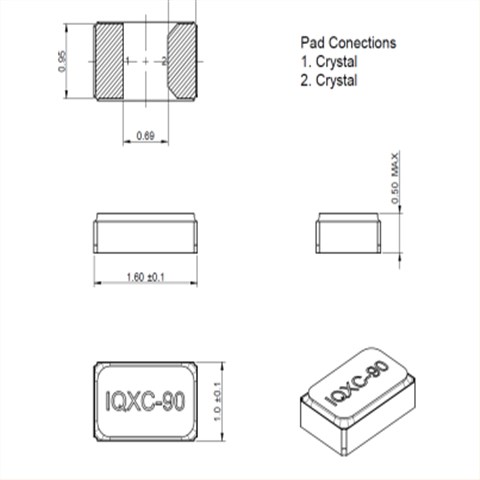

LFXTAL066198REEL,1610石英晶体谐振器,IQXC-90贴片晶体，尺寸图

Mfr Part #	1610贴片晶振	Series	Frequency	Frequency Tolerance	Load Capacitance	Operating Temperature
LFXTAL069494REEL	IQD Frequency Products	IQXC-42	25 MHz	±15ppm	10pF	-40°C ~ 85°C
LFXTAL059627REEL	IQD Frequency Products	IQXC-42	38.4 MHz	±15ppm	10pF	-40°C ~ 85°C
LFXTAL082135CUTT	IQD Frequency Products	IQXC-42	48 MHz	±10ppm	8pF	-40°C ~ 85°C
LFXTAL071259REEL	IQD Frequency Products	IQXC-42 AUTO	25 MHz	±10ppm	10pF	-40°C ~ 125°C
LFXTAL071266REEL	IQD Frequency Products	IQXC-42 AUTO	48 MHz	±10ppm	10pF	-40°C ~ 125°C
LFXTAL066198REEL	IQD Frequency Products	IQXC-90	32.768 kHz	±20ppm	9pF	-40°C ~ 85°C
LFXTAL085845	IQD Frequency Products	IQXC-42	25 MHz	±10ppm	8pF	-40°C ~ 125°C
LFXTAL085842	IQD Frequency Products	IQXC-42	16 MHz	±10ppm	8pF	-40°C ~ 125°C
LFXTAL085857	IQD Frequency Products	IQXC-42	40 MHz	±10ppm	10pF	-40°C ~ 125°C
LFXTAL082887RL3K	IQD Frequency Products	IQXC-42	16 MHz	±10ppm	10pF	-40°C ~ 105°C
LFXTAL085851	IQD Frequency Products	IQXC-42	32 MHz	±10ppm	10pF	-40°C ~ 125°C
LFXTAL069493REEL	IQD Frequency Products	IQXC-42	24 MHz	±15ppm	10pF	-40°C ~ 85°C
LFXTAL082129CUTT	IQD Frequency Products	IQXC-42	32 MHz	±10ppm	8pF	-40°C ~ 85°C
LFXTAL073170REEL	IQD Frequency Products	IQXC-42	32 MHz	±10ppm	10pF	-40°C ~ 85°C
LFXTAL085841	IQD Frequency Products	IQXC-42	20 MHz	±15ppm	10pF	-40°C ~ 125°C
LFXTAL085844	IQD Frequency Products	IQXC-42	24 MHz	±20ppm	10pF	-40°C ~ 125°C
LFXTAL085849	IQD Frequency Products	IQXC-42	27.12 MHz	±10ppm	10pF	-40°C ~ 125°C
LFXTAL071255REEL	IQD Frequency Products	IQXC-42 AUTO	16 MHz	±10ppm	10pF	-40°C ~ 125°C
LFXTAL071262REEL	IQD Frequency Products	IQXC-42 AUTO	32 MHz	±10ppm	10pF	-40°C ~ 125°C
LFXTAL065253REEL	IQD Frequency Products	IQXC-90	32.768 kHz	±20ppm	12.5pF	-40°C ~ 85°C
LFXTAL066431REEL	IQD Frequency Products	IQXC-90	32.768 kHz	±20ppm	7pF	-40°C ~ 85°C
LFXTAL081781CUTT	IQD Frequency Products	IQXC-42	16 MHz	±10ppm	8pF	-40°C ~ 85°C
LFXTAL059597REEL	IQD Frequency Products	IQXC-42	32 MHz	±15ppm	10pF	-40°C ~ 85°C
LFXTAL071257REEL	IQD Frequency Products	IQXC-42 AUTO	24 MHz	±10ppm	10pF	-40°C ~ 125°C
LFXTAL071258REEL	IQD Frequency Products	IQXC-42 AUTO	24.576 MHz	±10ppm	10pF	-40°C ~ 125°C
LFXTAL071265REEL	IQD Frequency Products	IQXC-42 AUTO	40 MHz	±10ppm	10pF	-40°C ~ 125°C
LFXTAL085850	IQD Frequency Products	IQXC-42	30 MHz	±10ppm	10pF	-40°C ~ 125°C
LFXTAL085846	IQD Frequency Products	IQXC-42	25 MHz	±25ppm	10pF	-40°C ~ 125°C
LFXTAL085859	IQD Frequency Products	IQXC-42	50 MHz	±10ppm	8pF	-40°C ~ 125°C
LFXTAL085847	IQD Frequency Products	IQXC-42	26 MHz	±10ppm	10pF	-40°C ~ 125°C
LFXTAL085848	IQD Frequency Products	IQXC-42	27 MHz	±10ppm	10pF	-40°C ~ 125°C
LFXTAL085858	IQD Frequency Products	IQXC-42	48 MHz	±10ppm	8pF	-40°C ~ 125°C
LFXTAL085852	IQD Frequency Products	IQXC-42	38.4 MHz	±10ppm	10pF	-40°C ~ 125°C
