VTEUMCJANF-27.000000,7050压控有源晶振,Taitien振荡器

产品简介

VTEUMCJANF-27.000000,7050压控有源晶振,Taitien振荡器，编码：VTEUMCJANF-27.000000，型号：VT，工作温度：-20°C ~ 70°C，尺寸：7.0*5.0mm，频率：27 MHz，精度：±50ppm，电压：3.3V，电流：20mA，进口晶振，压控晶振，有源晶振，VCXO石英晶体振荡器，石英晶振，典型7.0 x 5.0 x 1.45 mm 6焊盘陶瓷SMD封装，可提供紧密对称，输出频率高达250 MHz，三态使能/禁用，适用于时钟钟表，智能家具家电，无线电话，智能手机，无线通信。

产品详情

VTEUMCJANF-27.000000,7050压控有源晶振,Taitien振荡器，参数表

编码	VTEUMCJANF-27.000000
品牌	TAITIEN
型号	VT
频率	19.44 MHz
精度	±50ppm
电压	3.3V
电流	10mA
工作温度	-20°C ~ 70°C
尺寸	7.0*5.0mm

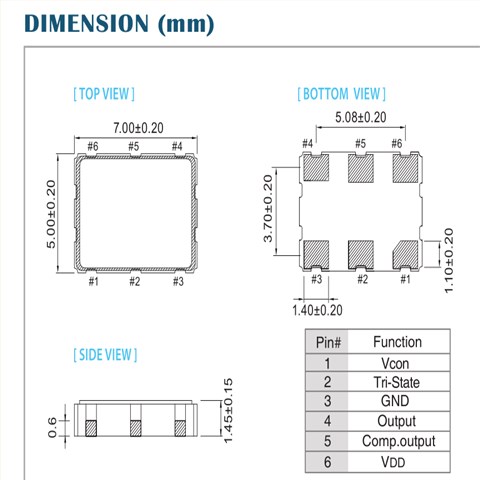

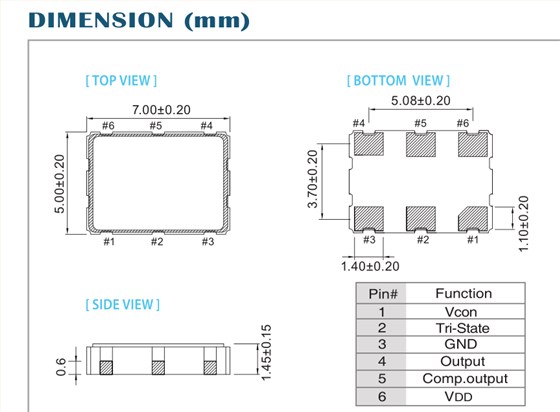

VTEUMCJANF-27.000000,7050压控有源晶振,Taitien振荡器，尺寸图

Mfr Part #	压控晶振	Series	Type	Frequency	Output	Voltage - Supply	Frequency Stability	Operating Temperature
VTEUMCJANF-19.440000	Taitien	VT	VCXO	19.44 MHz	CMOS	3.3V	±50ppm	-20°C ~ 70°C
VTEUPCJANF-19.440000	Taitien	VT	VCXO	19.44 MHz	CMOS	3.3V	±50ppm	-20°C ~ 70°C
VTEUPCJANF-35.328000	Taitien	VT	VCXO	35.328 MHz	CMOS	3.3V	±50ppm	-20°C ~ 70°C
VTEUMCJANF-35.328000	Taitien	VT	VCXO	35.328 MHz	CMOS	3.3V	±50ppm	-20°C ~ 70°C
VTEUMCJANF-25.000000	Taitien	VT	VCXO	25 MHz	CMOS	3.3V	±50ppm	-20°C ~ 70°C
VTEUPCJANF-33.333000	Taitien	VT	VCXO	33.333 MHz	CMOS	3.3V	±50ppm	-20°C ~ 70°C
VTEUPLJANF-15.360000	Taitien	VT	VCXO	15.36 MHz	CMOS	3.3V	±50ppm	-40°C ~ 85°C
VTEUMCJANF-27.000000	Taitien	VT	VCXO	27 MHz	CMOS	3.3V	±50ppm	-20°C ~ 70°C
VTEUPCJANF-2.048000	Taitien	VT	VCXO	2.048 MHz	CMOS	3.3V	±50ppm	-20°C ~ 70°C
VTEUMCJANF-4.096000	Taitien	VT	VCXO	4.096 MHz	CMOS	3.3V	±50ppm	-20°C ~ 70°C
VTEUBLJANF-31.250000	Taitien	VT	VCXO	31.25 MHz	CMOS	3.3V	±50ppm	-40°C ~ 85°C
VTEUMLJANF-35.328000	Taitien	VT	VCXO	35.328 MHz	CMOS	3.3V	±50ppm	-40°C ~ 85°C
VTEUMCJANF-77.760000	Taitien	VT	VCXO	77.76 MHz	CMOS	3.3V	±50ppm	-20°C ~ 70°C
VTEUPLJANF-61.440000	Taitien	VT	VCXO	61.44 MHz	CMOS	3.3V	±50ppm	-40°C ~ 85°C
VTEUPLJANF-40.960000	Taitien	VT	VCXO	40.96 MHz	CMOS	3.3V	±50ppm	-40°C ~ 85°C
VTEUMLJANF-38.880000	Taitien	VT	VCXO	38.88 MHz	CMOS	3.3V	±50ppm	-40°C ~ 85°C
VTEUMLJANF-2.048000	Taitien	VT	VCXO	2.048 MHz	CMOS	3.3V	±50ppm	-40°C ~ 85°C
VTEUPLJANF-16.384000	Taitien	VT	VCXO	16.384 MHz	CMOS	3.3V	±50ppm	-40°C ~ 85°C
VTEUMLJANF-25.000000	Taitien	VT	VCXO	25 MHz	CMOS	3.3V	±50ppm	-40°C ~ 85°C
VTEUALJANF-30.720000	Taitien	VT	VCXO	30.72 MHz	CMOS	3.3V	±50ppm	-40°C ~ 85°C
VTEUMCJANF-50.000000	Taitien	VT	VCXO	50 MHz	CMOS	3.3V	±50ppm	-20°C ~ 70°C
VTEUMLJANF-10.000000	Taitien	VT	VCXO	10 MHz	CMOS	3.3V	±50ppm	-40°C ~ 85°C
VTEUMLJANF-19.440000	Taitien	VT	VCXO	19.44 MHz	CMOS	3.3V	±50ppm	-40°C ~ 85°C
VTEUMLJANF-32.000000	Taitien	VT	VCXO	32 MHz	CMOS	3.3V	±50ppm	-40°C ~ 85°C
VTEUPCJANF-38.880000	Taitien	VT	VCXO	38.88 MHz	CMOS	3.3V	±50ppm	-20°C ~ 70°C
VTEUPLJANF-25.000000	Taitien	VT	VCXO	25 MHz	CMOS	3.3V	±50ppm	-40°C ~ 85°C
VTEUPLJANF-32.768000	Taitien	VT	VCXO	32.768 MHz	CMOS	3.3V	±50ppm	-40°C ~ 85°C
