2016陶瓷贴片晶振,XRCPB24M000F0L00R0,日本村田晶振
频率:24 MHz
尺寸:2.0mm*1.6mm

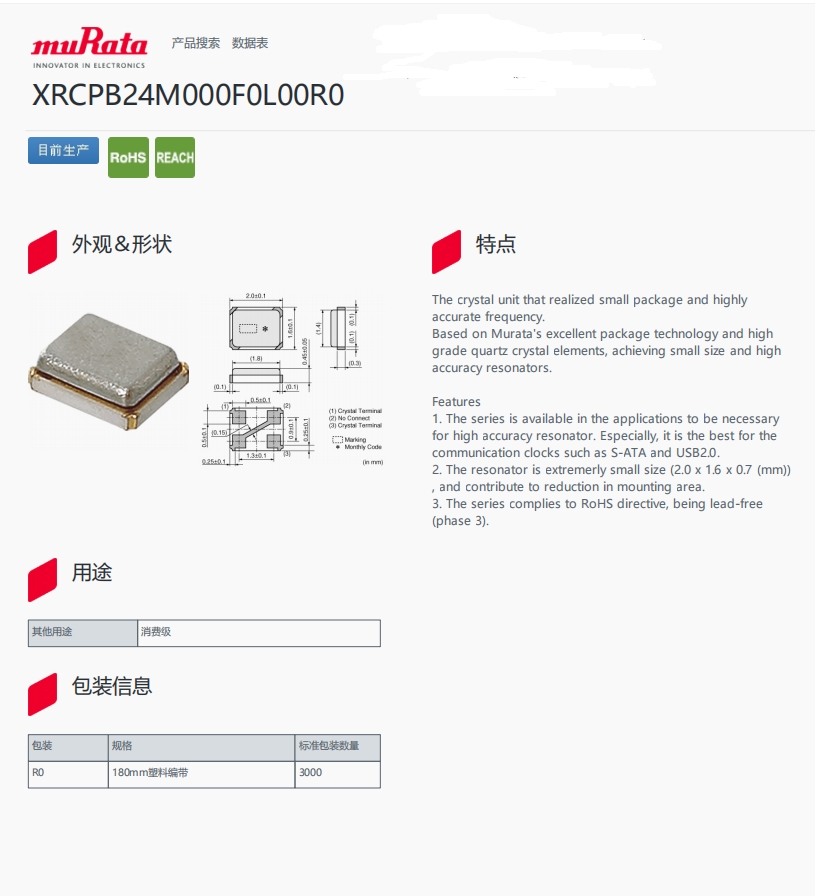

2016陶瓷贴片晶振,XRCPB24M000F0L00R0,日本村田晶振 ,编码:XRCPB24M000F0L00R0,型号:XRCPB,工作温度:-30°C ~ 85°C,尺寸:2.0mm*1.6mm,频率:24MHz,精度:±100ppm,负载电容:6pF,进口晶振,muRata谐振器,2016晶振,石英晶谐振器,贴片晶振,无源贴片晶振,陶瓷贴片晶振,实现了小封装和高精度的晶体单元频率。基于村田的优秀封装技术和高级石英晶体元件,实现小尺寸和高精密谐振器。特征1.该系列可用于以下应用场合高精度谐振器,特别它是最好的,S-ATA、USB2.0等通信时钟,谐振器的尺寸非常小,并有助于减少安装面积,该系列符合RoHS指令,是无铅的。
2016陶瓷贴片晶振,XRCPB24M000F0L00R0,日本村田晶振 ,参数表
编码 |
XRCPB24M000F0L00R0 |
品牌 | muRata |
型号 |
XRCPB |
频率 | 24 MHz |
精度 |
±100ppm |
负载电容 |
6pF |
工作温度 |
-30°C ~ 85°C |
尺寸 | 2.0mm*1.6mm |
![](/uploadfiles/pictures/product/20180915155527_0584.jpg)
Mfr Part # | 贴片晶振 | Series | Frequency | Frequency Tolerance | Load Capacitance | Operating Temperature |
XRCPB26M000F2P00R0 | Murata Electronics | XRCPB | 26 MHz | ±20ppm | 6pF | -30°C ~ 85°C |
XRCPB24M000F0Z00R0 | Murata Electronics | XRCPB | 24 MHz | ±100ppm | 6pF | -40°C ~ 105°C |
XRCPB24M000F2P00R0 | Murata Electronics | XRCPB | 24 MHz | ±20ppm | 6pF | -30°C ~ 85°C |
XRCPB24M576F0L00R0 | Murata Electronics | XRCPB | 24.576 MHz | ±100ppm | 6pF | -30°C ~ 85°C |
XRCPB25M000F0Z00R0 | Murata Electronics | XRCPB | 25 MHz | ±100ppm | 6pF | -40°C ~ 105°C |
XRCPB25M000F3M00R0 | Murata Electronics | XRCPB | 25 MHz | ±30ppm | 6pF | -30°C ~ 85°C |
XRCPB27M000F2P00R0 | Murata Electronics | XRCPB | 27 MHz | ±20ppm | 6pF | -30°C ~ 85°C |
XRCPB32M000F0L00R0 | Murata Electronics | XRCPB | 32 MHz | ±100ppm | 6pF | -30°C ~ 85°C |
XRCPB40M000F0L00R0 | Murata Electronics | XRCPB | 40 MHz | ±100ppm | 6pF | -30°C ~ 85°C |
XRCPB48M000F4M00R0 | Murata Electronics | XRCPB | 48 MHz | ±45ppm | 6pF | -30°C ~ 85°C |
XRCPB24M000F0L00R0 | Murata Electronics | XRCPB | 24 MHz | ±100ppm | 6pF | -30°C ~ 85°C |
XRCPB24M000F3N00R0 | Murata Electronics | XRCPB | 24 MHz | ±30ppm | 6pF | -20°C ~ 85°C |
XRCPB24M576F0Z00R0 | Murata Electronics | XRCPB | 24.576 MHz | ±100ppm | 6pF | -40°C ~ 105°C |
XRCPB25M000F0L00R0 | Murata Electronics | XRCPB | 25 MHz | ±100ppm | 6pF | -30°C ~ 85°C |
XRCPB25M000F2P00R0 | Murata Electronics | XRCPB | 25 MHz | ±20ppm | 6pF | -30°C ~ 85°C |
XRCPB26M000F0L00R0 | Murata Electronics | XRCPB | 26 MHz | ±100ppm | 6pF | -30°C ~ 85°C |
XRCPB26M000F0Z00R0 | Murata Electronics | XRCPB | 26 MHz | ±100ppm | 6pF | -40°C ~ 105°C |
XRCPB26M000F3N00R0 | Murata Electronics | XRCPB | 26 MHz | ±30ppm | 6pF | -20°C ~ 85°C |
XRCPB27M000F0L00R0 | Murata Electronics | XRCPB | 27 MHz | ±100ppm | 6pF | -30°C ~ 85°C |
XRCPB27M120F0L00R0 | Murata Electronics | XRCPB | 27.12 MHz | ±100ppm | 6pF | -30°C ~ 85°C |
XRCPB27M120F2P00R0 | Murata Electronics | XRCPB | 27.12 MHz | ±20ppm | 6pF | -30°C ~ 85°C |
XRCPB30M000F0L00R0 | Murata Electronics | XRCPB | 30 MHz | ±100ppm | 6pF | -30°C ~ 85°C |
XRCPB30M000F0Z00R0 | Murata Electronics | XRCPB | 30 MHz | ±100ppm | 6pF | -40°C ~ 105°C |
