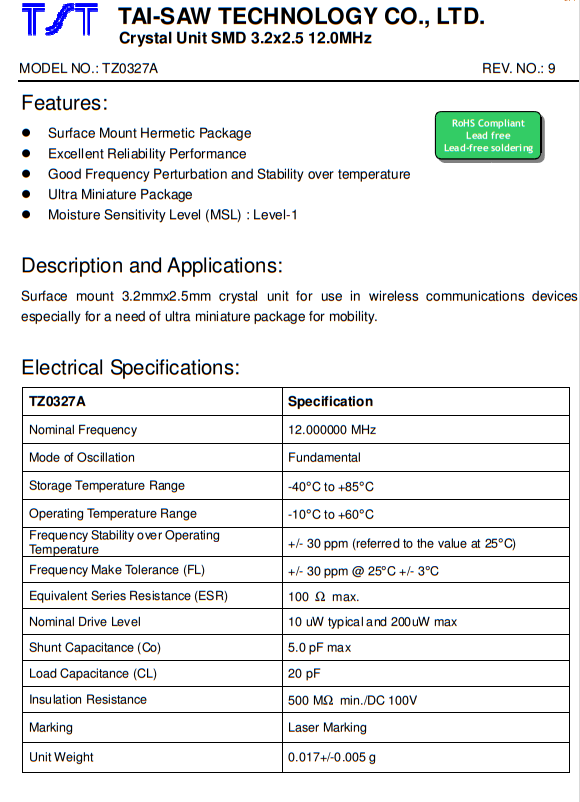

TST嘉硕谐振器,无源谐振器,四脚贴片晶体,TZ0327A石英晶振
频率：12 MHz
尺寸：3.2x2.5mm
TST嘉硕谐振器,无源谐振器,四脚贴片晶体,TZ0327A石英晶振，台产石英贴片晶振，SMD贴片谐振器，无源石英晶体，编码为：TZ0327A，频率：12 MHz，频率稳定为：±30ppm，频率公差为：±30ppm，负载电容为：20PF，工作温度范围：-10℃至+60℃，晶振体积尺寸为：3.2x2.5mm，四脚贴片晶振，ROHS环保晶振，超小型石英晶体谐振器，贴片石英晶振，TST无源晶振，该晶振产品本身设计合理，成本和性能都很良好，具备高精度高稳定性能，外观为金属封装，有着超好的密封性能，SMD编带盘装包装方式，符合欧盟环保标准。
订购热线：0755-27876236
TST嘉硕谐振器,无源谐振器,四脚贴片晶体,TZ0327A石英晶振，台产石英贴片晶振，SMD贴片谐振器，无源石英晶体，编码为：TZ0327A，频率：12 MHz，频率稳定为：±30ppm，频率公差为：±30ppm，负载电容为：20PF，工作温度范围：-10℃至+60℃，晶振体积尺寸为：3.2x2.5mm，四脚贴片晶振，ROHS环保晶振，超小型石英晶体谐振器，贴片石英晶振，TST无源晶振，该晶振产品本身设计合理，成本和性能都很良好，具备高精度高稳定性能，外观为金属封装，有着超好的密封性能，SMD编带盘装包装方式，符合欧盟环保标准。
TST嘉硕谐振器,无源谐振器,四脚贴片晶体,TZ0327A石英晶振
| 编码 | 品牌 | 频率(MHz) | 负载电容(Pf) | 频率公差/工作温度 | 尺寸(mm) |
| TZ0327A | TST嘉硕 | 12 | 20 | 30ppm/30ppm/-10C~+60C | 3.2x2.5x0.7 |
TST嘉硕谐振器,无源谐振器,四脚贴片晶体,TZ0327A石英晶振
| 编码 | 品牌 | 频率(MHz) | 负载电容(Pf) | 频率公差/工作温度 | 尺寸(mm) |
| TZ0327A | TST晶振 | 12 | 20 | 30ppm/30ppm/-10C~+60C | 3.2x2.5x0.7 |
| TZ0327B | TST晶振 | 12 | 20 | 30ppm/30ppm/-20C~+70C | 3.2x2.5x0.7 |
| TZ0327C | TST晶振 | 12 | 20 | 20ppm/20ppm/-10C~+60C | 3.2x2.5x0.7 |
| TZ0327D | TST晶振 | 12 | 20 | 30ppm/30ppm/-10C~+70C | 3.2x2.5x0.7 |
| TZ0327E | TST晶振 | 12 | 20 | 15ppm/20ppm/-10C~+85C | 3.2x2.5x0.7 |
| TZ0341A | TST晶振 | 12 | 20 | 30ppm/30ppm/-10C~+60C | 4.0x2.5x0.8 |
| TZ0347A | TST晶振 | 12 | 10 | 20ppm/20ppm/-20C~+70C | 3.2x2.5x0.7 |
| TZ0347B | TST晶振 | 12 | 10 | 10ppm/10ppm/-10C~+60C | 3.2x2.5x0.7 |
| TZ0347C | TST晶振 | 12 | 10 | 10ppm/10ppm/-20C~+80C | 3.2x2.5x0.7 |
| TZ0347D | TST晶振 | 12 | 10 | 10ppm/10ppm/-20C~+70C | 3.2x2.5x0.7 |
| TZ0347E | TST晶振 | 12 | 10 | 10ppm/10ppm/-20C~+70C | 3.2x2.5x0.7 |
| TZ0358A | TST晶振 | 12 | 18 | 30ppm/30ppm/-10C~+60C | 5.0x3.2x0.8 |
| TZ0368A | TST晶振 | 12 | 18 | 30ppm/30ppm/-20C~+70C | 3.2x2.5x0.7 |
| TZ0368B | TST晶振 | 12 | 18 | 20ppm/20ppm/-20C~+70C | 3.2x2.5x0.7 |
| TZ0368C | TST晶振 | 12 | 18 | 30ppm/30ppm/-20C~+70C | 3.2x2.5x0.7 |
| TZ0368D | TST晶振 | 12 | 18 | 10ppm/10ppm/-20C~+85C | 3.2x2.5x0.7 |
| TZ0368E | TST晶振 | 12 | 18 | 7ppm/15ppm/-40C~+85C | 3.2x2.5x0.7 |
| TZ0420A | TST晶振 | 12 | 9 | 10ppm/10ppm/-10C~+60C | 4.0x2.5x0.8 |
| TZ0433A | TST晶振 | 12 | 12 | 10ppm/25ppm/-40C~+85C | 4.0x2.5x0.8 |
| TZ0438A | TST晶振 | 12.8 | 8 | 10ppm/20ppm/-35C~+85C | 5.0x3.2x0.8 |
| TZ0442A | TST晶振 | 12 | 9 | 10ppm/10ppm/-10C~+60C | 3.2x2.5x0.7 |
| TZ0449A | TST晶振 | 12 | 9 | 10ppm/10ppm/-20C~+70C | 4.0x2.5x0.8 |
| TZ0457A | TST晶振 | 12 | 20 | 10ppm/10ppm/-20C~+75C | 4.0x2.5x0.8 |
| TZ0481A | TST晶振 | 12 | 8 | 10ppm/10ppm/-10C~+60C | 3.2x2.5x0.7 |
| TZ0515A | TST晶振 | 12 | 16 | 30ppm/50ppm/-10C~+60C | HC49-SMD |
| TZ0635A | TST晶振 | 12 | 16 | 50ppm/50ppm/-10C~+60C | 6.0x3.5x1.2 |
| TZ0683A | TST晶振 | 12 | 12 | 10ppm/10ppm/-10C~+60C | 3.2x2.5x0.7 |
| TZ0746A | TST晶振 | 12.288 | 18 | 30ppm/30ppm/-10C~+60C | 3.2x2.5x0.7 |
| TZ0760A | TST晶振 | 12 | 15 | 15ppm/15ppm/-10C~+60C | 3.2x0.5x0.7 |
| TZ0760E | TST晶振 | 12 | 15 | 10ppm/10ppm/-20C~+70C | 3.2x2.5x0.7 |
| TZ0768A | TST晶振 | 12.288 | 9 | 20ppm/30ppm/-20C~+70C | 4.0x2.5x0.8 |
| TZ0809A | TST晶振 | 12 | 20 | 10ppm/10ppm/-10C~+70C | 3.2x2.5x0.7 |
| TZ0810A | TST晶振 | 12 | 9 | 10+/-10ppm/10ppm/-10C~+60C | 4.0x2.5x0.8 |
| TZ0868A | TST晶振 | 12 | 16 | 10ppm/10ppm/-10C ~+60C | 3.2x2.5x0.7 |
| TZ0874A | TST晶振 | 12 | 30 | 30ppm/30ppm/-10C~+60C | 3.2x2.5x0.7 |
| TZ0901A | TST晶振 | 12 | 12.5 | 10ppm/10ppm/-10C~+60C | 4.0x2.5x0.8 |
| TZ1050A | TST晶振 | 12 | 18 | 30ppm/30ppm/-10C~+70C | 6.0x3.5x1.1 |
| TZ1158A | TST晶振 | 12 | 20 | 30ppm/30ppm/-20C~+70C | 6.0x3.5x1.1 |
| TZ1224A | TST晶振 | 12 | 22 | 30pm/30ppm/-10C~+70C | 3.2x2.5x0.7 |
| TZ1228A | TST晶振 | 12.288 | 10 | 10ppm/10ppm/-20C~+70C | 5.0x3.2x1.0 |
| TZ1293A | TST晶振 | 12 | 20 | 20ppm/20ppm/-20C~+70C | 5.0x3.2x0.8 |
| TZ1293E | TST晶振 | 12 | 20 | 10ppm/10ppm/-20C~+70C | 5.0x3.2x1.0 |
| TZ1365A | TST晶振 | 12.8 | 12 | 10ppm/10ppm/-20C~+70C | 3.2x2.5x0.7 |
| TZ1390A | TST晶振 | 12 | 18 | 30ppm/30ppm/-20C~+70C | HC49-SMD |
| TZ1444A | TST晶振 | 12 | 10 | 10ppm/15ppm/-30C~+85C | 3.2x2.5x0.7 |
| TZ1450A | TST晶振 | 12 | 32 | 10ppm/10ppm/-20C~+80C | 3.2x2.5x0.7 |
| TZ1457A | TST晶振 | 12.8 | 10 | 10ppm/10ppm/-20C~+70C | 3.2x2.5x0.7 |
| TZ1527A | TST晶振 | 12.288 | 20 | 20ppm/20ppm/-20C~+70C | 3.2x2.5x0.7 |
| TZ1562A | TST晶振 | 12.8 | 20 | 10ppm/15ppm/-40C~+85C | 4.0x2.5x0.8 |
| TZ1631A | TST晶振 | 12 | 16pF | 30ppm/50ppm/-20C~+70C | HC49-SMD |
| TZ1712A | TST晶振 | 12 | 12 | 20ppm/10ppm/-10C~+60C | 3.2x2.5x0.7 |
| TZ1723A | TST晶振 | 12 | 13 | 50ppm/50ppm/-40C~+125C | 5.0x3.2x1.0 |
| TZ1732A | TST晶振 | 12 | 10 | 20ppm/20ppm/-30C~+85C | 5.0x3.2x1.0 |
| TZ1733A | TST晶振 | 12 | 20 | 30ppm/30ppm/-10C~+70C | HC49US |
| TZ1832A | TST晶振 | 12 | 20 | 100ppm/100ppm/-20C~+70C | 8.0x3.0 |
| TZ1901A | TST晶振 | 12 | 10 | 10ppm/20ppm/-20C~+70C | 2.5x2.0x0.6 |
| TZ1901C | TST晶振 | 12 | 10 | 20ppm/30ppm/-20C~+85C | 2.5x2.0x0.6 |
| TZ1901D | TST晶振 | 12 | 10 | 10ppm/30ppm/-40C~+85C | 2.5x2.0x0.6 |
| TZ1901E | TST晶振 | 12 | 10 | 30ppm/30ppm/-40C~+85C | 2.5x2.0x0.6 |
| TZ1908A | TST晶振 | 12.8 | 16pF | 15ppm/15ppm/-20C~+70C | 3.2x2.5x0.7 |
| TZ1917B | TST晶振 | 12.8 | 20 | 10ppm/15ppm/-40C~+85C | 3.2x2.5x0.7 |
| TZ1962A | TST晶振 | 12.8 | 20 | 3ppm/NA/-55C~+125C | HC43U |
| TZ2094A | TST晶振 | 12 | 12 | 10ppm/15ppm/-30C~+85C | 2.5x2.0x0.6 |
| TZ2094C | TST晶振 | 12 | 12 | 10ppm/30ppm/-40C~+85C | 2.5x2.0x0.6 |
| TZ2094D | TST晶振 | 12 | 12 | 10ppm/30ppm/-40C~+100C | 2.5x2.0x0.6 |
| TZ2094EA41BH | TST晶振 | 12 | 12 | 10ppm/15ppm/-30C~+85C | 2.5x2.0x0.6 |
| TZ2097A | TST晶振 | 12 | 11.5 | 30ppm/30ppm/-10C~+60C | 5.0x3.2x1.0 |
| TZ2237A | TST晶振 | 12 | 10 | 50ppm/50ppm/-40C~+85C | 3.2x2.5x0.7 |
| TZ2265A | TST晶振 | 12 | 18 | 30ppm/30ppm/-10C~+70C | 3.2x2.5x0.7 |
| TZ2321A | TST晶振 | 12 | 16 | 20ppm/30ppm/-30C~+80C | 5.0x3.2x1.0 |
| TZ2436A | TST晶振 | 12 | 20 | 20ppm/20ppm/-10C~+60C | HC49US |
| TZ2445A | TST晶振 | 12 | 18 | 10ppm/10ppm/-40C~+85C | 2.5x2.0x0.6 |
| TZ2483A | TST晶振 | 12.8 | 18 | 15ppm/20ppm/-40C~+85C | 3.2x2.5x0.7 |
| TZ2503A | TST晶振 | 12 | 10 | 30ppm/30ppm/-20C~+70C | 3.2x2.5 |
| TZ2508A | TST晶振 | 12 | 18 | 20ppm/20ppm/-20C~+70C | HC49US |
| TZ2517A | TST晶振 | 12.035 | 10 | 20ppm/20ppm/-20C~+70C | 3.2x2.5x0.7 |
| TZ2690A | TST晶振 | 12.288 | 20 | 30ppm/30ppm/-40C~+85C | HC49-SMD |
| TZ2715A | TST晶振 | 12.2666 | 16 | 30ppm/50ppm/-20C~+70C | HC49-SMD |
| TZ2716A | TST晶振 | 12 | 20 | 30ppm/30ppm/-10C~+70C | 2.5x2.0x0.6 |
| TZ2716B | TST晶振 | 12 | 20 | 10ppm/15ppm/-10C~+70C | 2.5x2.0x0.6 |
| TZ2716C | TST晶振 | 12 | 20 | 10ppm/15ppm/-30C~+85C | 2.5x2.0x0.6 |
| TZ2716EABO35 | TST晶振 | 12 | 20 | 10ppm/50ppm/-40C~+125C | 2.5x2.0x0.6 |
| TZ2767D | TST晶振 | 12 | 12 | 20ppm/30ppm/-40C~+85C | 3.2x2.5x0.7 |
| TZ2806A | TST晶振 | 12.288 | 12 | 30ppm/30ppm/-20C~+70C | 3.2x2.5x0.8 |
| TZ3043A | TST晶振 | 12 | 8 | 20ppm/20ppm/-20C~+70C | 2.5x2.0x0.6 |
深圳市壹兆电子科技有限公司
联系人：龚成
电话：0755--27876236
QQ：769468702
手机：13590198504
邮箱:zhaoxiandz@163.com
网站:http://www.oscillatorcrystal.com
采购：TST嘉硕谐振器,无源谐振器,四脚贴片晶体,TZ0327A石英晶振
- *联系人：
- *手机：
- 公司名称：
- 邮箱：
- *采购意向：
-
*验证码：
