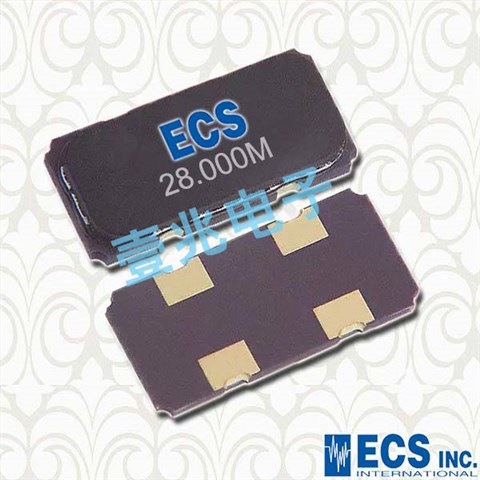

ECS-122.8-18-18-TR,CSM-12,无源晶体谐振器

ECS-122.8-18-18-TR,CSM-12,无源晶体谐振器,贴片晶振本身体积小,超薄型石英晶体谐振器,特别适用于有目前高速发展的高端电子数码产品,因为晶振本身小型化需求的市场领域,小型,薄型是对应陶瓷谐振器(偏差大)和普通的石英晶体谐振器(偏差小)的中间领域的一种性价比较出色的产品.产品广泛用于笔记本电脑,移动通信设备，数字AV设备，可穿戴设备，无线电话,卫星导航HDD, SSD, USB, Blu-ray等用途,符合无铅焊接的高温回流焊曲线特性.
ECS晶振公司是世界一流的研究机构和电子设备设计师公认的创新频率控制解决方案的前15的全球开发商和制造出全球竞争者数超过600的晶振厂家. “通过与班上最好的合作,成为向电信工业,实用,航海,汽车,RFID,航空航天和医疗(非生命支持)行业提供创新,先进的频率控制组件解决方案的市场领导者石英晶振/滤波器,时钟振荡器,陶瓷谐振器/滤波器和所有其他压电产品的制造.
晶振的真空封装技术:是指石英晶振在真空封装区域内进行封装.1.防止外界气体进入组件体内受到污染和增加应力的产生;2.使晶振组件在真空下电阻减小;3.气密性高.此技术为研发及生产超小型、超薄型石英晶振必须攻克的关键技术之一.

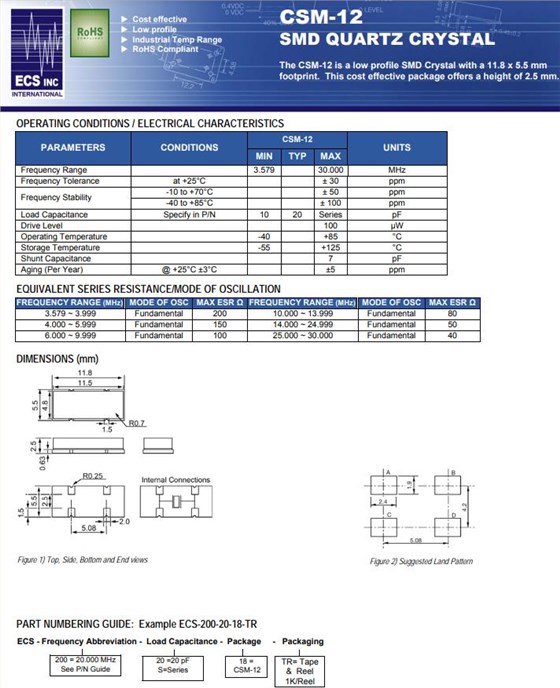

ECScrystal晶振规格参数	CSM-12晶振
频率范围	12.288 MHz
频率稳定度公差	±30ppm
工作温度范围	-40°C to +85°C
等效串联电阻	See ESR Table
负载电容	18pF,
激励功率	100 µW TYP
老化@ + 25°C	±5 ppm/yr
绝缘电阻(@直流100 v)	500 Ohms@ DC 100V
储存温度范围	-55°C to +125°C

Mfr Part #	石英晶振	Series	Frequency	Frequency Stability	Frequency Tolerance	Load Capacitance	ESR (Equivalent Series Resistance)	Operating Temperature
ECS-40-S-18-TR	ECS Inc.	CSM-12	4 MHz	±100ppm	±30ppm	Series	150 Ohms	-40°C ~ 85°C
ECS-40-18-18-TR	ECS Inc.	CSM-12	4 MHz	±100ppm	±30ppm	18pF	150 Ohms	-40°C ~ 85°C
ECS-36-20-18-TR	ECS Inc.	CSM-12	3.6864 MHz	±100ppm	±30ppm	20pF	200 Ohms	-40°C ~ 85°C
ECS-40-20-18-TR	ECS Inc.	CSM-12	4 MHz	±100ppm	±30ppm	20pF	150 Ohms	-40°C ~ 85°C
ECS-80-S-18-TR	ECS Inc.	CSM-12	8 MHz	±100ppm	±30ppm	Series	100 Ohms	-40°C ~ 85°C
ECS-36-18-18-TR	ECS Inc.	CSM-12	3.6864 MHz	±100ppm	±30ppm	18pF	200 Ohms	-40°C ~ 85°C
ECS-100-S-18-TR	ECS Inc.	CSM-12	10 MHz	±100ppm	±30ppm	Series	80 Ohms	-40°C ~ 85°C
ECS-240-16-18-TR	ECS Inc.	CSM-12	24 MHz	±100ppm	±30ppm	16pF	50 Ohms	-40°C ~ 85°C
ECS-143-S-18-TR	ECS Inc.	CSM-12	14.31818 MHz	±100ppm	±30ppm	Series	50 Ohms	-40°C ~ 85°C
ECS-41-18-18-TR	ECS Inc.	CSM-12	4.096 MHz	±100ppm	±30ppm	18pF	150 Ohms	-40°C ~ 85°C
ECS-60-18-18-TR	ECS Inc.	CSM-12	6 MHz	±100ppm	±30ppm	18pF	100 Ohms	-40°C ~ 85°C
ECS-80-18-18-TR	ECS Inc.	CSM-12	8 MHz	±100ppm	±30ppm	18pF	100 Ohms	-40°C ~ 85°C
ECS-120-18-18-TR	ECS Inc.	CSM-12	12 MHz	±100ppm	±30ppm	18pF	80 Ohms	-40°C ~ 85°C
ECS-36-S-18-TR	ECS Inc.	CSM-12	3.6864 MHz	±100ppm	±30ppm	Series	200 Ohms	-40°C ~ 85°C
ECS-160-18-18-TR	ECS Inc.	CSM-12	16 MHz	±100ppm	±30ppm	18pF	50 Ohms	-40°C ~ 85°C
ECS-200-18-18-TR	ECS Inc.	CSM-12	20 MHz	±100ppm	±30ppm	18pF	50 Ohms	-40°C ~ 85°C
ECS-49-18-18-TR	ECS Inc.	CSM-12	4.9152 MHz	±100ppm	±30ppm	18pF	150 Ohms	-40°C ~ 85°C
ECS-98.3-20-18-TR	ECS Inc.	CSM-12	9.8304 MHz	±100ppm	±30ppm	20pF	100 Ohms	-40°C ~ 85°C
ECS-200-20-18-TR	ECS Inc.	CSM-12	20 MHz	±100ppm	±30ppm	20pF	50 Ohms	-40°C ~ 85°C
ECS-147.4-18-18-TR	ECS Inc.	CSM-12	14.7456 MHz	±100ppm	±30ppm	18pF	50 Ohms	-40°C ~ 85°C
ECS-73-S-18-TR	ECS Inc.	CSM-12	7.3728 MHz	±100ppm	±30ppm	Series	100 Ohms	-40°C ~ 85°C
ECS-250-18-18-TR	ECS Inc.	CSM-12	25 MHz	±100ppm	±30ppm	18pF	40 Ohms	-40°C ~ 85°C
ECS-80-20-18-TR	ECS Inc.	CSM-12	8 MHz	±100ppm	±30ppm	20pF	100 Ohms	-40°C ~ 85°C
ECS-100-18-18-TR	ECS Inc.	CSM-12	10 MHz	±100ppm	±30ppm	18pF	80 Ohms	-40°C ~ 85°C
ECS-73-18-18-TR	ECS Inc.	CSM-12	7.3728 MHz	±100ppm	±30ppm	18pF	100 Ohms	-40°C ~ 85°C
ECS-50-18-18-TR	ECS Inc.	CSM-12	5 MHz	±100ppm	±30ppm	18pF	150 Ohms	-40°C ~ 85°C
ECS-61-32-18-TR	ECS Inc.	CSM-12	6.144 MHz	±100ppm	±30ppm	32pF	100 Ohms	-40°C ~ 85°C
ECS-98.3-S-18-TR	ECS Inc.	CSM-12	9.8304 MHz	±100ppm	±30ppm	Series	100 Ohms	-40°C ~ 85°C
ECS-110.5-20-18-TR	ECS Inc.	CSM-12	11.0592 MHz	±100ppm	±30ppm	20pF	80 Ohms	-40°C ~ 85°C
ECS-196.6-S-18-TR	ECS Inc.	CSM-12	19.6608 MHz	±100ppm	±30ppm	Series	50 Ohms	-40°C ~ 85°C
ECS-143-20-18-TR	ECS Inc.	CSM-12	14.31818 MHz	±100ppm	±30ppm	20pF	50 Ohms	-40°C ~ 85°C
