TCXO|X1G0054210037|16.384000MHz|2520mm|-40~+85℃|TG2520SMN

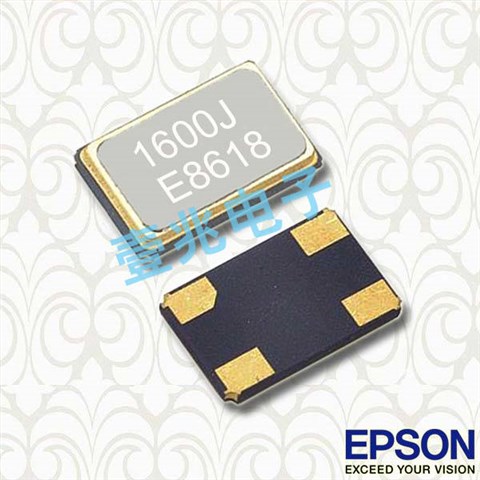

TCXO|X1G0054210037|16.384000MHz|2520mm|-40~+85℃|TG2520SMN，爱普生晶振型号TG2520SMN，产品编码：X1G0054210037，产品型号：TG2520SMN16.384000MHzTCGNNM，是一款小体积晶振尺寸2.5x2.0mm四脚贴片晶振，有源晶振，石英晶振，温补晶体振荡器，电源电压：1.8V~3.3V，工作温度：-40~+85℃，是高稳定性和低相位噪声的TCXO晶振，使用Epson开发和制造的IC和MHz基晶体。相位噪声是爱普生紧凑的TCXO产品系列中最低的，使其成为GNSS和其他无线通信设备的理想参考时钟。具有超小型，轻薄型，低抖动，低功耗，低耗能，低电源电压，低损耗，低电平，低相位噪声等特点，被应用于GNSS射频无线通信设备LTE、WiMAX、Wi-Fi、W-LAN网联网，无线网络，蓝牙模块等。

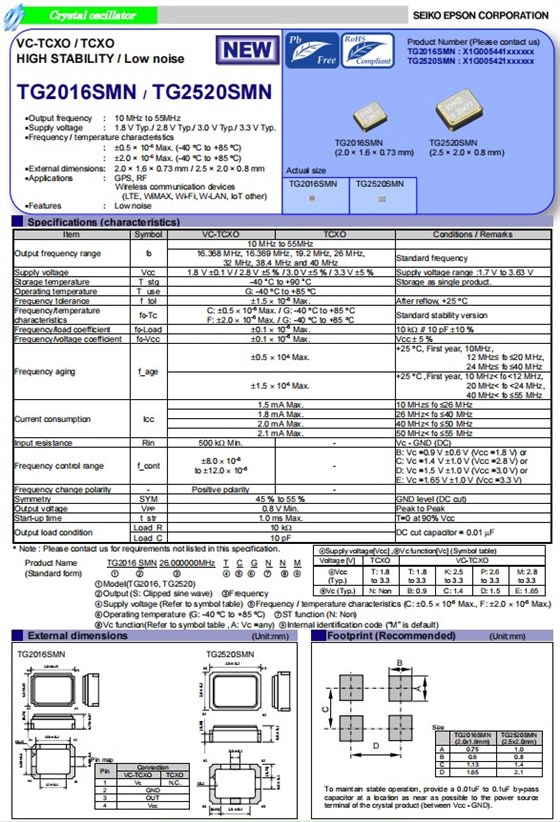

TCXO|X1G0054210037|16.384000MHz|2520mm|-40~+85℃|TG2520SMN，参数图

TG2016SMN/ TG2520SMN	Symbol	VC-TCXO	TCXO	Conditions / Remarks
输出频率范围	f0	10 MHz to 55MHz
输出频率范围	f0	16.368 MHz, 16.369 MHz, 19.2 MHz, 26 MHz, 32 MHz, 38.4 MHz and 40 MHz		Standard frequency
电源电压	VCC	1.8 V±0.1 V / 2.8 V±5 % / 3.0 V±5 % / 3.3 V±5 %		Supply voltage range :1.7 V to 3.63 V
储存温度	T_stg	-40 °C to +90 °C		Storage as single product.
工作温度	T_use	G: -40°C to +85°C
频率容差	f_tol	±1.5´10-6 Max.		After reflow, +25°C
“频率/温度特性”	f0-TC	C:±0.5´10-6 Max. / G: -40°C to +85°C F:±2.0´10-6 Max. / G: -40°C to +85°C		Standard stability version
频率/负载系数	f0-Load	±0.1´10-6 Max.		10 kW// 10 pF±10 %
频率/电压系数	f0-VCC	±0.1´10-6 Max.		VCC±5 %
频率老化	f_age	±0.5´10-6 Max.		+25°C, First year, 10MHz, 12 MHz≤ f0 ≤20 MHz, 24 MHz≤ f0 ≤40 MHz
频率老化	f_age	±1.5´10-6 Max.		+25°C ,First year, 10 MHz< f0 <12 MHz, 20 MHz< f0 <24 MHz, 40 MHz< f0 ≤55 MHz
电流消耗		1.5 mA Max.		10 MHz≤ f0 ≤26 MHz
	ICC	1.8 mA Max.		26 MHz< f0 ≤40 MHz
		2.0 mA Max.		40 MHz< f0 ≤50 MHz
		2.1 mA Max.		50 MHz< f0 ≤55 MHz
输入电阻	Rin	500 kWMin.	-	VC - GND (DC)
频率控制范围	f_cont	±8.0´10-6 to ±12.0 ´ 10-6	-	B: VC =0.9 V ±0.6 V (VCC =1.8 V) or C: VC =1.4 V ±1.0 V (VCC =2.8 V) or D: VC =1.5 V ±1.0 V (VCC =3.0 V) or E: VC =1.65 V ±1.0 V (VCC =3.3 V)
频率变化极性	-	Positive polarity	-
对称性	SYM	45 % to 55 %		GND level (DC cut)
输出电压	VPP	0.8 V Min.		Peak to Peak
启动时间	t_str	1.0 ms Max.		T=0 at 90% Vcc
输出负载条件	Load_R	10 kW		DC cut capacitor = 0.01mF
输出负载条件	Load_C	10 pF		DC cut capacitor = 0.01mF

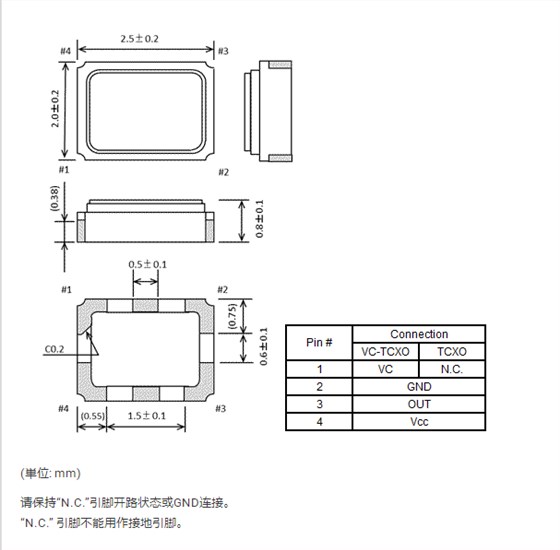

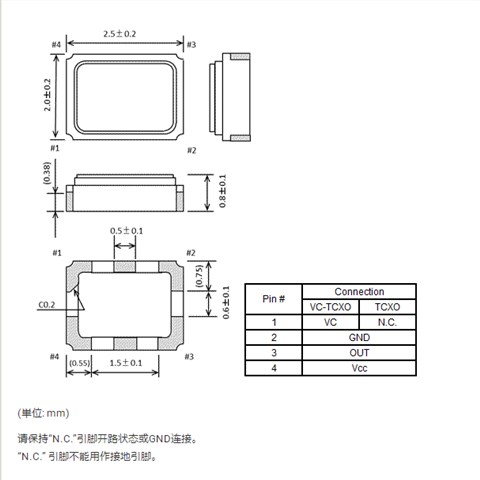

TCXO|X1G0054210037|16.384000MHz|2520mm|-40~+85℃|TG2520SMN，尺寸图

编码	爱普生晶振	频率	尺寸	输出	电压
X1G0054210029	TG2520SMN	19.200000 MHz	2.50 x 2.00 x 0.80 mm	Clipped sine wave	3.135 to 3.465 V
X1G0054210030	TG2520SMN	12.000000 MHz	2.50 x 2.00 x 0.80 mm	Clipped sine wave	3.135 to 3.465 V
X1G0054210037	TG2520SMN	16.384000 MHz	2.50 x 2.00 x 0.80 mm	Clipped sine wave	1.700 to 1.900 V
X1G0054210038	TG2520SMN	16.384000 MHz	2.50 x 2.00 x 0.80 mm	Clipped sine wave	2.260 to 3.465 V
X1G0054210201	TG2520SMN	16.368000 MHz	2.50 x 2.00 x 0.80 mm	Clipped sine wave	1.700 to 1.900 V
X1G0054210202	TG2520SMN	16.369000 MHz	2.50 x 2.00 x 0.80 mm	Clipped sine wave	1.700 to 1.900 V
X1G0054210203	TG2520SMN	19.200000 MHz	2.50 x 2.00 x 0.80 mm	Clipped sine wave	1.700 to 1.900 V
X1G0054210204	TG2520SMN	26.000000 MHz	2.50 x 2.00 x 0.80 mm	Clipped sine wave	1.700 to 1.900 V
X1G0054210205	TG2520SMN	32.000000 MHz	2.50 x 2.00 x 0.80 mm	Clipped sine wave	1.700 to 1.900 V
X1G0054210206	TG2520SMN	38.400000 MHz	2.50 x 2.00 x 0.80 mm	Clipped sine wave	1.700 to 1.900 V
X1G0054210207	TG2520SMN	40.000000 MHz	2.50 x 2.00 x 0.80 mm	Clipped sine wave	1.700 to 1.900 V
X1G0054210208	TG2520SMN	16.000000 MHz	2.50 x 2.00 x 0.80 mm	Clipped sine wave	1.700 to 1.900 V
X1G0054210211	TG2520SMN	20.000000 MHz	2.50 x 2.00 x 0.80 mm	Clipped sine wave	1.700 to 1.900 V
X1G0054210212	TG2520SMN	24.000000 MHz	2.50 x 2.00 x 0.80 mm	Clipped sine wave	1.700 to 1.900 V
X1G0054210213	TG2520SMN	25.000000 MHz	2.50 x 2.00 x 0.80 mm	Clipped sine wave	1.700 to 1.900 V
X1G0054210214	TG2520SMN	27.000000 MHz	2.50 x 2.00 x 0.80 mm	Clipped sine wave	1.700 to 1.900 V
X1G0054210215	TG2520SMN	30.000000 MHz	2.50 x 2.00 x 0.80 mm	温补晶振	1.700 to 1.900 V
X1G0054210216	TG2520SMN	48.000000 MHz	2.50 x 2.00 x 0.80 mm	Clipped sine wave	1.700 to 1.900 V
X1G0054210220	TG2520SMN	52.000000 MHz	2.50 x 2.00 x 0.80 mm	Clipped sine wave	1.700 to 1.900 V
X1G0054210221	TG2520SMN	27.600000 MHz	2.50 x 2.00 x 0.80 mm	Clipped sine wave	1.700 to 1.900 V
X1G0054210222	TG2520SMN	50.000000 MHz	2.50 x 2.00 x 0.80 mm	Clipped sine wave	1.700 to 1.900 V
X1G0054210301	TG2520SMN	16.368000 MHz	2.50 x 2.00 x 0.80 mm	Clipped sine wave	2.660 to 3.465 V
X1G0054210302	TG2520SMN	16.369000 MHz	2.50 x 2.00 x 0.80 mm	Clipped sine wave	2.660 to 3.465 V
X1G0054210303	TG2520SMN	19.200000 MHz	2.50 x 2.00 x 0.80 mm	Clipped sine wave	2.660 to 3.465 V
X1G0054210304	TG2520SMN	26.000000 MHz	2.50 x 2.00 x 0.80 mm	Clipped sine wave	2.660 to 3.465 V
X1G0054210305	TG2520SMN	32.000000 MHz	2.50 x 2.00 x 0.80 mm	Clipped sine wave	2.660 to 3.465 V
X1G0054210306	TG2520SMN	38.400000 MHz	2.50 x 2.00 x 0.80 mm	Clipped sine wave	2.660 to 3.465 V
X1G0054210307	TG2520SMN	40.000000 MHz	2.50 x 2.00 x 0.80 mm	Clipped sine wave	2.660 to 3.465 V
X1G0054210308	TG2520SMN	16.000000 MHz	2.50 x 2.00 x 0.80 mm	Clipped sine wave	2.660 to 3.465 V
X1G0054210311	TG2520SMN	20.000000 MHz	2.50 x 2.00 x 0.80 mm	Clipped sine wave	2.660 to 3.465 V
X1G0054210312	TG2520SMN	24.000000 MHz	2.50 x 2.00 x 0.80 mm	Clipped sine wave	2.660 to 3.465 V
X1G0054210313	TG2520SMN	25.000000 MHz	2.50 x 2.00 x 0.80 mm	Clipped sine wave	2.660 to 3.465 V
X1G0054210314	TG2520SMN	27.000000 MHz	2.50 x 2.00 x 0.80 mm	Clipped sine wave	2.660 to 3.465 V
X1G0054210315	TG2520SMN	30.000000 MHz	2.50 x 2.00 x 0.80 mm	Clipped sine wave	2.660 to 3.465 V
