超小型晶振|CX2016DB|CX2016DB19200H0KFQC1|19.2MHz|2016mm|12pF

频率：19.2MHz

尺寸：2.0x1.6mm

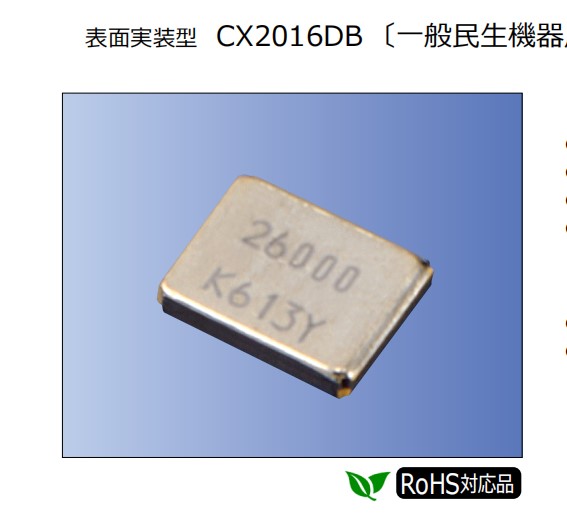

超小型晶振|CX2016DB|CX2016DB19200H0KFQC1|19.2MHz|2016mm|12pF，日本进口晶振，Kyocera京瓷晶振，型号CX2016DB，编码为CX2016DB19200H0KFQC1，是一款小体积晶振尺寸2.0x1.6mm表面贴装型，四脚贴片石英晶体，无源晶振，晶体谐振器，石英晶振，无铅环保晶振，频率19.2MHz，工作温度范围：-30℃至+85℃，具有超小型，轻薄型，耐热及耐环境特点，石英晶振被广泛用于通讯设备，数码家电，一般民用机器设备，无线蓝牙，智能手机，平板电脑，智能家居，汽车电子，可穿戴设备，小型便捷式设备等应用。

订购热线：0755-27876236

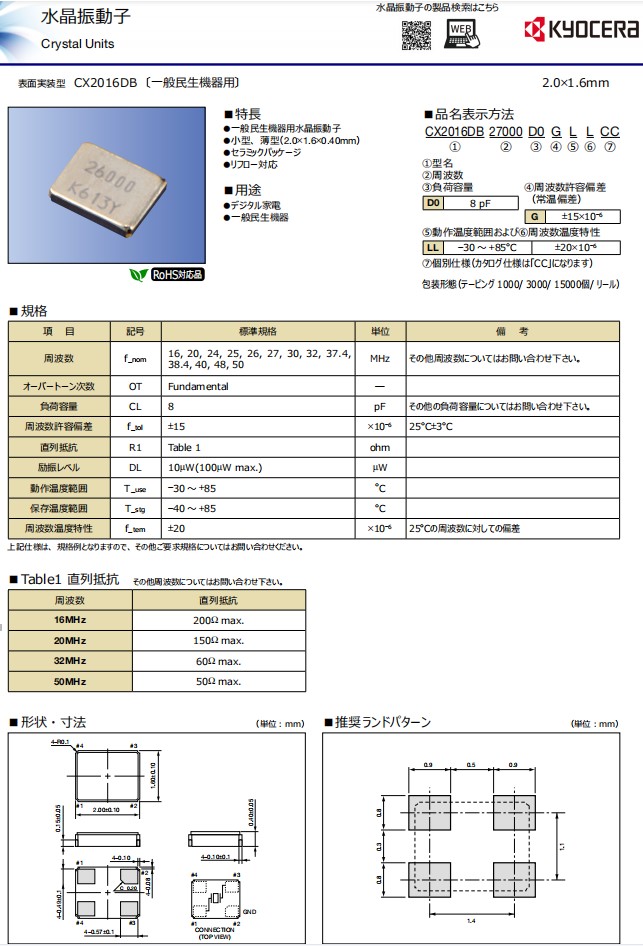

項目	記号	CX2016DB 规格	単位	備考
周波数	f_nom	16, 20, 24, 25, 26, 27, 30, 32, 37 .4, 38 .4, 40, 48, 50	MHz	关于其他频率请咨询
超调阶数	OT	Fundamental	―
負荷容量	CL	8	pF	关于其他的负荷容量请咨询
周波数許容偏差	f_tol	± 15	× 10−6	25°C± 3°C
直列抵抗	R1	Table 1	ohm
激励水平	DL	10μW(100μW max .)	W
動作温度範囲	T_use	− 30 ~ +85	°C
保存温度範囲	T_stg	−40 ~ +85	°C
周波数温度特性	f_tem	± 20	× 10−6	相对于25℃频率的偏差

超小型晶振|CX2016DB|CX2016DB19200H0KFQC1|19.2MHz|2016mm|12pF

品名表示方法

CX2016DB 27000 D0 G L L CC

① ② ③ ④ ⑤ ⑥ ⑦

①型名

②周波数

③負荷容量

D0	8 pF
G	± 15× 10−6

⑤动作温度范围及

⑥频率温度特性

− 30 ~ +85°C

± 20× 10−6

⑦个别规格（目录规格为“CC”）

包装形态（包装1000/3000/15000个/卷轴）

原厂编码	京瓷SMD晶振	频率	工作温度	包装/封装
CX2016DB27120B0HLLC1	CX2016DB	27.12MHz	-30°C ~ 85°C	4-SMD, No Lead
CX2016DB19200H0KFQC1	CX2016DB	19.2MHz	-20°C ~ 70°C	4-SMD, No Lead
CX2016DB38400C0WPLA2	CX2016DB	38.4MHz	-40°C ~ 85°C	4-SMD, No Lead
CX2016DB38400D0FLJCC	CX2016DB	38.4MHz	-30°C ~ 85°C	4-SMD, No Lead
CX2016DB32000D0WZRC1	CX2016DB	32MHz	-25°C ~ 75°C	4-SMD, No Lead
CX2016DB26000H0FLJC2	CX2016DB	26MHz	-30°C ~ 85°C	4-SMD, No Lead
CX2016DB24000D0GEJCC	CX2016DB	24MHz	-10°C ~ 70°C	4-SMD, No Lead
CX2016DB32000D0FLJCC	CX2016DB	32MHz	-30°C ~ 85°C	4-SMD, No Lead
CX2016DB40000D0FLJCC	CX2016DB	40MHz	-30°C ~ 85°C	4-SMD, No Lead
CX2016DB48000C0WPLA2	CX2016DB	48MHz	-40°C ~ 85°C	4-SMD, No Lead
CX2016DB16000D0FLJCC	CX2016DB	16MHz	-30°C ~ 85°C	4-SMD, No Lead
CX2016DB24000H0FLJC4	CX2016DB	24MHz	-30°C ~ 85°C	4-SMD, No Lead
CX2016DB25000H0FLJC1	CX2016DB	25MHz	-30°C ~ 85°C	4-SMD, No Lead
CX2016DB24576H0FLJC1	CX2016DB	24.576MHz	-30°C ~ 85°C	4-SMD, No Lead
CX2016DB19200D0FLJC1	CX2016DB	19.2MHz	-30°C ~ 85°C	4-SMD, No Lead
CX2016DB20000H0FLJC1	CX2016DB	20MHz	-30°C ~ 85°C	4-SMD, No Lead
CX2016DB19200H0FLJC2	CX2016DB	19.2MHz	-30°C ~ 85°C	4-SMD, No Lead
CX2016DB48000H0FLJC1	CX2016DB	48MHz	-30°C ~ 85°C	4-SMD, No Lead
CX2016DB16000H0FLJC1	CX2016DB	16MHz	-30°C ~ 85°C	4-SMD, No Lead
CX2016DB25000D0FLJC2	CX2016DB	25MHz	-30°C ~ 85°C	4-SMD, No Lead
CX2016DB32000H0FLJC1	CX2016DB	32MHz	-30°C ~ 85°C	4-SMD, No Lead
CX2016DB24000D0FLJC6	CX2016DB	24MHz	-30°C ~ 85°C	4-SMD, No Lead
CX2016DB27000H0FLFC1	CX2016DB	27MHz	-30°C ~ 85°C	4-SMD, No Lead
CX2016DB26000D0FLJCC	CX2016DB	26MHz	-30°C ~ 85°C	4-SMD, No Lead
CX2016DB20000D0FLJCC	CX2016DB无源晶振	20MHz	-30°C ~ 85°C	4-SMD, No Lead
CX2016DB48000E0DLFA1	CX2016DB	48MHz	-30°C ~ 85°C	4-SMD, No Lead
CX2016DB16000D0WZRC1	CX2016DB	16MHz	-25°C ~ 75°C	4-SMD, No Lead
CX2016DB48000C0WLLA1	CX2016DB	48MHz	-30°C ~ 85°C	4-SMD, No Lead
CX2016DB16000D0GPSC1	CX2016DB	16MHz	-40°C ~ 85°C	4-SMD, No Lead
CX2016DB32000D0WPRC1	CX2016DB	32MHz	-25°C ~ 75°C	4-SMD, No Lead
CX2016DB19200D0GPSC1	CX2016DB	19.2MHz	-40°C ~ 85°C	4-SMD, No Lead
CX2016DB20000D0GPSC1	CX2016DB	20MHz	-40°C ~ 85°C	4-SMD, No Lead
CX2016DB24000D0GPSC2	CX2016DB	24MHz	-40°C ~ 85°C	4-SMD, No Lead
CX2016DB24576D0FLJC1	CX2016DB	24.576MHz	-30°C ~ 85°C	4-SMD, No Lead
CX2016DB24576D0GPSC1	CX2016DB	24.576MHz	-40°C ~ 85°C	4-SMD, No Lead
CX2016DB25000D0GPSC1	CX2016DB	25MHz	-40°C ~ 85°C	4-SMD, No Lead
CX2016DB26000D0FLJC4	CX2016DB	26MHz	-30°C ~ 85°C	4-SMD, No Lead
CX2016DB26000D0GPSC1	CX2016DB	26MHz	-40°C ~ 85°C	4-SMD, No Lead
CX2016DB27000D0FLJC1	CX2016DB	27MHz	-30°C ~ 85°C	4-SMD, No Lead
CX2016DB27000H0FLJC1	CX2016DB	27MHz	-30°C ~ 85°C	4-SMD, No Lead
CX2016DB27000D0GPSC1	CX2016DB	27MHz	-40°C ~ 85°C	4-SMD, No Lead
CX2016DB30000D0FLJC1	CX2016DB	30MHz	-30°C ~ 85°C	4-SMD, No Lead
CX2016DB30000H0FLJC1	CX2016DB	30MHz	-30°C ~ 85°C	4-SMD, No Lead
CX2016DB30000D0GPSC1	CX2016DB	30MHz	-40°C ~ 85°C	4-SMD, No Lead
CX2016DB32000D0GPSC1	CX2016DB	32MHz	-40°C ~ 85°C	4-SMD, No Lead
CX2016DB38400D0FLJC2	CX2016DB	38.4MHz	-30°C ~ 85°C	4-SMD, No Lead
CX2016DB38400H0FLJC1	CX2016DB	38.4MHz	-30°C ~ 85°C	4-SMD, No Lead
CX2016DB38400D0GPSC1	CX2016DB	38.4MHz	-40°C ~ 85°C	4-SMD, No Lead
CX2016DB40000H0FLJC1	CX2016DB	40MHz	-30°C ~ 85°C	4-SMD, No Lead
CX2016DB40000D0GPSC1	CX2016DB	40MHz	-40°C ~ 85°C	4-SMD, No Lead
CX2016DB48000D0FLJC1	CX2016DB	48MHz	-30°C ~ 85°C	4-SMD, No Lead
CX2016DB48000D0GPSC1	CX2016DB	48MHz	-40°C ~ 85°C	4-SMD, No Lead
CX2016DB24576D0GEJCC	CX2016DB	24.576MHz	-10°C ~ 70°C	4-SMD, No Lead
CX2016DB27000D0GEJCC	CX2016DB	27MHz	-10°C ~ 70°C	4-SMD, No Lead
CX2016DB35416K0DZFA1	CX2016DB	35.416MHz	-10°C ~ 70°C	4-SMD, No Lead
CX2016DB35416K0HJLC1	CX2016DB贴片晶振	35.416MHz	-30°C ~ 85°C	4-SMD, No Lead
CX2016DB24576D0GEJZ1	CX2016DB	24.576MHz	-10°C ~ 70°C	4-SMD, No Lead
CX2016DB26000D0FLJZ1	CX2016DB	26MHz	-30°C ~ 85°C	4-SMD, No Lead
CX2016DB27000D0GEJZ1	CX2016DB	27MHz	-10°C ~ 70°C	4-SMD, No Lead
CX2016DB32000D0FLJZ1	CX2016DB	32MHz	-30°C ~ 85°C	4-SMD, No Lead
CX2016DB38400D0FLJZ1	CX2016DB	38.4MHz	-30°C ~ 85°C	4-SMD, No Lead
CX2016DB40000D0FLJZ1	CX2016DB	40MHz	-30°C ~ 85°C	4-SMD, No Lead
CX2016DB24000D0GEJZ1	CX2016DB	24MHz	-10°C ~ 70°C	4-SMD, No Lead
CX2016DB26000D0FLJC1	CX2016DB	26MHz	-30°C ~ 85°C	4-SMD, No Lead
CX2016DB50000D0KJSC1	CX2016DB	50MHz	-30°C ~ 75°C	4-SMD, No Lead
CX2016DB31250K0KJSC1	CX2016DB	31.25MHz	-30°C ~ 75°C	4-SMD, No Lead
CX2016DB39062K0KJSC1	CX2016DB	39.0625MHz	-30°C ~ 75°C	4-SMD, No Lead
CX2016DB38880D0KJSC1	CX2016DB	38.88MHz	-30°C ~ 75°C	4-SMD, No Lead
CX2016DB40960D0KJSC1	CX2016DB	40.96MHz	-30°C ~ 75°C	4-SMD, No Lead
CX2016DB53125K0KJSC1	CX2016DB	53.125MHz	-30°C ~ 75°C	4-SMD, No Lead
