402F38411CAR,2016谐振器,CTS晶振

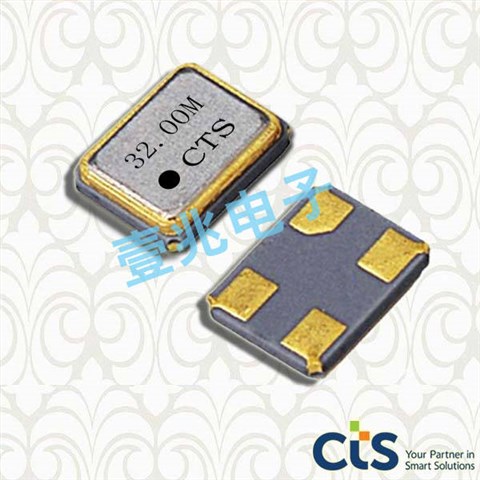

402F38411CAR,2016谐振器,CTS晶振，编码：402F38411CAR，型号：CTS系列晶振，工作温度：-20°C ~ 70°C，尺寸：2.0*1.6mm，频率：38.4MHz，负载电容：10pF，精度：±10ppm，石英晶体谐振器，贴片晶振，美国进口晶振，标准2.0毫米x 1.6mm毫米缝焊组件基本晶体设计频率范围为16–60 MHz 频率容差，20ppm标准频率稳定性，30ppm标准工作温度为-40℃至+85℃ 胶带和卷轴包装标准，EIA-481，402型是一种低成本石英谐振器，广泛应用于商业领域，包括可穿戴和手持电子产品、笔记本电脑、平板电脑、计算机外设、蓝牙、ZigBee和USB接口。

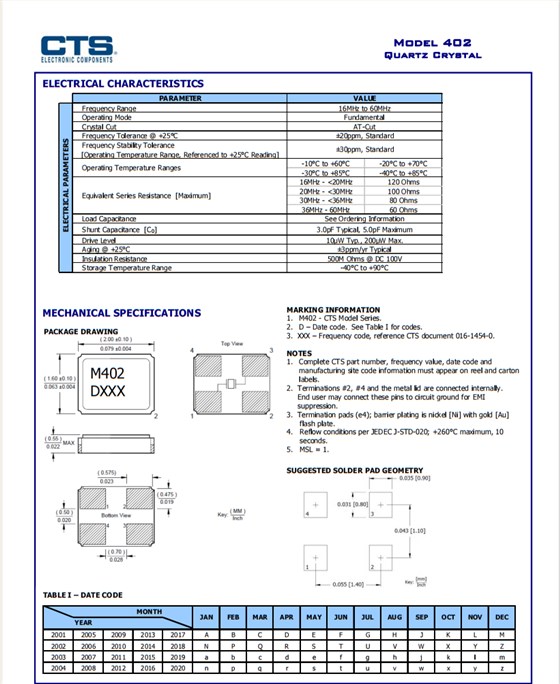

402F38411CAR,2016谐振器,CTS晶振，参数表

PARAMETER

VALUE

Frequency Range

16MHz to 60MHz

Operating Mode

Fundamental

Crystal Cut

AT-Cut

Frequency Tolerance @ +25°C

±20ppm, Standard

Frequency Stability Tolerance
[Operating Temperature Range, Referenced to +25°C Reading]

±30ppm, Standard

Operating Temperature Ranges

-10°C to +60°C

-20°C to +70°C

-30°C to +85°C

-40°C to +85°C

Equivalent Series Resistance[Maximum]

16MHz - <20MHz

120 Ohms

20MHz - <30MHz

100 Ohms

30MHz - <36MHz

80 Ohms

36MHz - 60MHz

60 Ohms

Load Capacitance

See Ordering Information

Shunt Capacitance[C0]

3.0pF Typical, 5.0pF Maximum

Drive Level

10µW Typ., 200µW Max.

Aging @ +25°C

±3ppm/yr Typical

Insulation Resistance

500M Ohms @ DC 100V

Storage Temperature Range

-40°C to +90°C

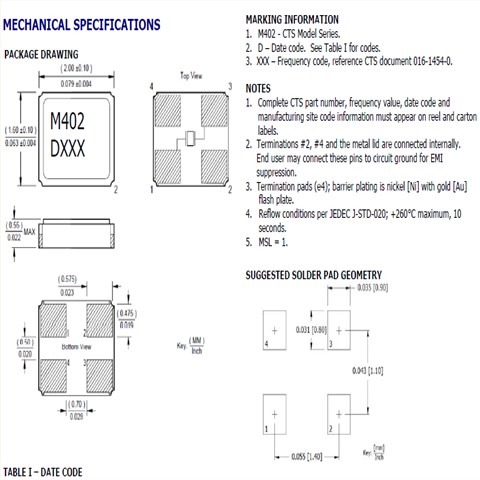

402F38411CAR,2016谐振器,CTS晶振，尺寸图

Manufacturer Part Number原厂编码	西迪斯Oscillator	Series型号	Frequency	Frequency Stability频率稳定度	Frequency Tolerance频率偏差	Load Capacitance负载电容	ESR (Equivalent Series Resistance)电阻	Operating Temperature工作温度
402F2401XIAR	CTS-Frequency Controls	402	24MHz	±15ppm	±10ppm	10pF	100 Ohm	-40°C ~ 85°C
402F2401XIAR	CTS-Frequency Controls	402	24MHz	±15ppm	±10ppm	10pF	100 Ohm	-40°C ~ 85°C
402F2401XIAR	CTS-Frequency Controls	402	24MHz	±15ppm	±10ppm	10pF	100 Ohm	-40°C ~ 85°C
402F2501XIAR	CTS-Frequency Controls	402	25MHz	±15ppm	±10ppm	10pF	100 Ohm	-40°C ~ 85°C
402F2501XIAR	CTS-Frequency Controls	402	25MHz	±15ppm	±10ppm	10pF	100 Ohm	-40°C ~ 85°C
402F2501XIAR	CTS-Frequency Controls	402	25MHz	±15ppm	±10ppm	10pF	100 Ohm	-40°C ~ 85°C
402F27011CAR	CTS-Frequency Controls	402	27MHz	±10ppm	±10ppm	10pF	100 Ohm	-20°C ~ 70°C
402F27011CAR	CTS-Frequency Controls	402	27MHz	±10ppm	±10ppm	10pF	100 Ohm	-20°C ~ 70°C
402F27011CAR	CTS-Frequency Controls	402	27MHz	±10ppm	±10ppm	10pF	100 Ohm	-20°C ~ 70°C
402F30011CAR	CTS-Frequency Controls	402	30MHz	±10ppm	±10ppm	10pF	80 Ohm	-20°C ~ 70°C
402F30011CAR	CTS-Frequency Controls	402	30MHz	±10ppm	±10ppm	10pF	80 Ohm	-20°C ~ 70°C
402F30011CAR	CTS-Frequency Controls	402	30MHz	±10ppm	±10ppm	10pF	80 Ohm	-20°C ~ 70°C
402F38411CAR	CTS-Frequency Controls	402	38.4MHz	±10ppm	±10ppm	10pF	60 Ohm	-20°C ~ 70°C
402F38411CAR	CTS-Frequency Controls	402	38.4MHz	±10ppm	±10ppm	10pF	60 Ohm	-20°C ~ 70°C
402F38411CAR	CTS-Frequency Controls	402	38.4MHz	±10ppm	±10ppm	10pF	60 Ohm	-20°C ~ 70°C
402F2001XIAR	CTS-Frequency Controls	402	20MHz	±15ppm	±10ppm	10pF	100 Ohm	-40°C ~ 85°C
402F2001XIAR	CTS-Frequency Controls	402	20MHz	±15ppm	±10ppm	10pF	100 Ohm	-40°C ~ 85°C
402F2001XIAR	CTS-Frequency Controls	402	20MHz	±15ppm	±10ppm	10pF	100 Ohm	-40°C ~ 85°C
402F4001XIAR	CTS-Frequency Controls	402	40MHz	±15ppm	±10ppm	10pF	60 Ohm	-40°C ~ 85°C
402F4001XIAR	CTS-Frequency Controls	402	40MHz	±15ppm	±10ppm	10pF	60 Ohm	-40°C ~ 85°C
402F4001XIAR	CTS-Frequency Controls	402	40MHz	±15ppm	±10ppm	10pF	60 Ohm	-40°C ~ 85°C
402F24011CAR	CTS-Frequency Controls	402	24MHz	±10ppm	±10ppm	10pF	100 Ohm	-20°C ~ 70°C
402F24011CAR	CTS-Frequency Controls	402	24MHz	±10ppm	±10ppm	10pF	100 Ohm	-20°C ~ 70°C
402F24011CAR	CTS-Frequency Controls	402	24MHz	±10ppm	±10ppm	10pF	100 Ohm	-20°C ~ 70°C
402F3201XIAR	CTS-Frequency Controls	402	32MHz	±15ppm	±10ppm	10pF	80 Ohm	-40°C ~ 85°C
402F3201XIAR	CTS-Frequency Controls	402	32MHz	±15ppm	±10ppm	10pF	80 Ohm	-40°C ~ 85°C
402F3201XIAR	CTS-Frequency Controls	402	32MHz	±15ppm	±10ppm	10pF	80 Ohm	-40°C ~ 85°C
402F32011CAR	CTS-Frequency Controls	402	32MHz	±10ppm	±10ppm	10pF	80 Ohm	-20°C ~ 70°C
402F32011CAR	CTS-Frequency Controls	402	32MHz	±10ppm	±10ppm	10pF	80 Ohm	-20°C ~ 70°C
402F32011CAR	CTS-Frequency Controls	402	32MHz	±10ppm	±10ppm	10pF	80 Ohm	-20°C ~ 70°C
402F160XXCKR	CTS-Frequency Controls	402	16MHz	±15ppm	±15ppm	8pF	120 Ohm	-20°C ~ 70°C
402F192XXCKR	CTS-Frequency Controls	402	19.2MHz	±15ppm	±15ppm	8pF	120 Ohm	-20°C ~ 70°C
402F200XXCKR	CTS-Frequency Controls	402	20MHz	±15ppm	±15ppm	8pF	100 Ohm	-20°C ~ 70°C
402F204XXCKR	CTS-Frequency Controls	402	20.48MHz	±15ppm	±15ppm	8pF	100 Ohm	-20°C ~ 70°C
