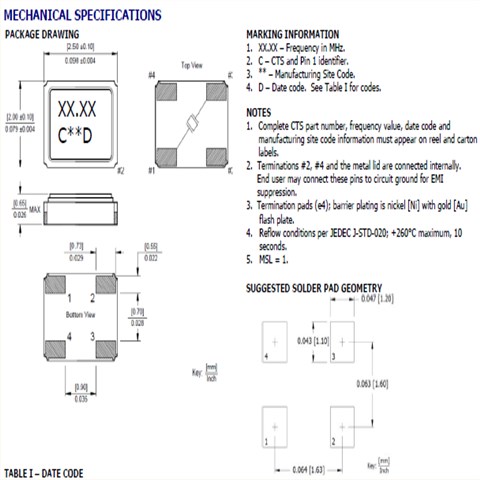

2520石英晶体谐振器,425F22A024M5760,美国进口CTS晶振，编码：425F22A024M5760，型号：425系列晶振，工作温度：-20°C ~ 70°C，尺寸：2.5*2.0mm，频率：24.576MHz，负载电容：10pF，精度：±20ppm，标准2.5毫米x 2.0mm毫米缝焊包
基本晶体设计
频率范围12–60 MHz
频率容差，20ppm标准
频率稳定性，20ppm标准
工作温度为-40℃至+85℃
胶带和卷轴包装标准，EIA-481，425型是一种低成本石英晶体谐振器，广泛应用于商业领域，包括
可穿戴和手持电子产品、笔记本电脑、平板电脑、计算机外设、蓝牙、ZigBee和USB接口。
2520石英晶体谐振器,425F22A024M5760,美国进口CTS晶振，参数表
| 原厂编码 |
425F22A024M5760 |
| 品牌 | CTS晶振 |
| 型号 | 425 |
| 频率 | 24.576MHz |
| 频率偏差 | ±20ppm |
| 负载电容 | 10pF |
| 工作温度 | -20°C ~ 70°C |
| Manufacturer Part Number原厂编码 | 壹兆晶振厂家 | Series型号 | Frequency | Frequency Tolerance频率偏差 | Load Capacitance负载电容 | Operating Temperature工作温度 |
| 425F22A024M5760 | CTS-Frequency Controls | 425 | 24.576MHz | ±20ppm | 10pF | -20°C ~ 70°C |
| 425F22A024M5760 | CTS-Frequency Controls | 425 | 24.576MHz | ±20ppm | 10pF | -20°C ~ 70°C |
| 425F22A024M5760 | CTS-Frequency Controls | 425 | 24.576MHz | ±20ppm | 10pF | -20°C ~ 70°C |
| 425F22A016M3676 | CTS-Frequency Controls | 425 | 16.3676MHz | ±20ppm | 10pF | -20°C ~ 70°C |
| 425F22A016M3676 | CTS-Frequency Controls | 425 | 16.3676MHz | ±20ppm | 10pF | -20°C ~ 70°C |
| 425F22A016M3676 | CTS-Frequency Controls | 425 | 16.3676MHz | ±20ppm | 10pF | -20°C ~ 70°C |
| 425F22A025M0000 | CTS-Frequency Controls | 425 | 25MHz | ±20ppm | 10pF | -20°C ~ 70°C |
| 425F22A025M0000 | CTS-Frequency Controls | 425 | 25MHz | ±20ppm | 10pF | -20°C ~ 70°C |
| 425F22A025M0000 | CTS-Frequency Controls | 425 | 25MHz | ±20ppm | 10pF | -20°C ~ 70°C |
| 425F22A027M0000 | CTS-Frequency Controls | 425 | 27MHz | ±20ppm | 10pF | -20°C ~ 70°C |
| 425F22A027M0000 | CTS-Frequency Controls | 425 | 27MHz | ±20ppm | 10pF | -20°C ~ 70°C |
| 425F22A027M0000 | CTS-Frequency Controls | 425 | 27MHz | ±20ppm | 10pF | -20°C ~ 70°C |
| 425F22A030M0000 | CTS-Frequency Controls | 425 | 30MHz | ±20ppm | 10pF | -20°C ~ 70°C |
| 425F22A030M0000 | CTS-Frequency Controls | 425 | 30MHz | ±20ppm | 10pF | -20°C ~ 70°C |
| 425F22A030M0000 | CTS-Frequency Controls | 425 | 30MHz | ±20ppm | 10pF | -20°C ~ 70°C |
| 425F22A048M0000 | CTS-Frequency Controls | 425 | 48MHz | ±20ppm | 10pF | -20°C ~ 70°C |
| 425F22A048M0000 | CTS-Frequency Controls | 425 | 48MHz | ±20ppm | 10pF | -20°C ~ 70°C |
| 425F22A048M0000 | CTS-Frequency Controls | 425 | 48MHz | ±20ppm | 10pF | -20°C ~ 70°C |
| 425F35E027M0000 | CTS-Frequency Controls | 425 | 27MHz | ±30ppm | 20pF | -20°C ~ 70°C |
| 425F35E027M0000 | CTS-Frequency Controls | 425 | 27MHz | ±30ppm | 20pF | -20°C ~ 70°C |
| 425F35E027M0000 | CTS-Frequency Controls | 425 | 27MHz | ±30ppm | 20pF | -20°C ~ 70°C |
| 425F35B020M0000 | CTS-Frequency Controls | 425 | 20MHz | ±30ppm | 13pF | -20°C ~ 70°C |
| 425F35B020M0000 | CTS-Frequency Controls | 425 | 20MHz | ±30ppm | 13pF | -20°C ~ 70°C |
| 425F35B020M0000 | CTS-Frequency Controls | 425 | 20MHz | ±30ppm | 13pF | -20°C ~ 70°C |
