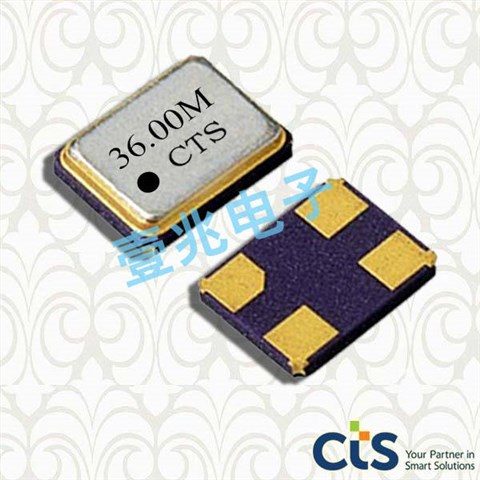

416F38025ILR石英晶体,1612谐振器，编码：416F38025ILR，型号：416系列晶振，工作温度：-40°C ~ 85°C，尺寸：1.6*1.2mm，频率：38MHz，负载电容：12pF，精度：±20ppm，视图晶体谐振器，进口晶振，西迪斯美国进口晶振，密封陶瓷表面贴装封装

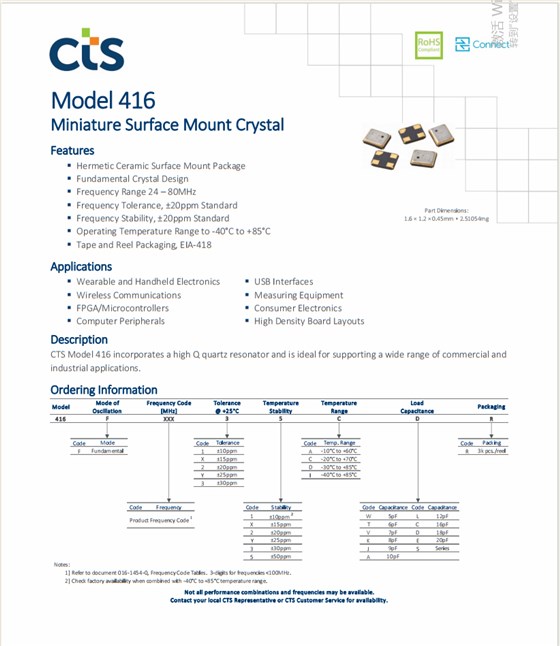

基本晶体设计
频率范围24–80 MHz
频率容差，20ppm标准
频率稳定性，20ppm标准
工作温度范围为-40℃至+85℃
胶带和卷轴包装，EIA‐418，可穿戴和手持电子设备
无线通信
FPGA/微控制器
计算机外围设备
USB接口
测量设备
消费电子产品
高密度板布局。
416F38025ILR石英晶体,1612谐振器，参数表
| 原厂编码 |
416F38025ILR |
| 品牌 | CTS晶振 |
| 型号 | 416 |
| 频率 | 38MHz |
| 频率偏差 | ±20ppm |
| 负载电容 | 12pF |
| 工作温度 | -40°C ~ 85°C |
| Manufacturer Part Number原厂编码 | 壹兆晶振厂家 | Series型号 | Frequency | Frequency Tolerance频率偏差 | Load Capacitance负载电容 | Operating Temperature工作温度 |
| 416F26022CKR | CTS-Frequency Controls | 416 | 26MHz | ±20ppm | 8pF | -20°C ~ 70°C |
| 416F26022CKR | CTS-Frequency Controls | 416 | 26MHz | ±20ppm | 8pF | -20°C ~ 70°C |
| 416F26022CKR | CTS-Frequency Controls | 416 | 26MHz | ±20ppm | 8pF | -20°C ~ 70°C |
| 416F27022CKR | CTS-Frequency Controls | 416 | 27MHz | ±20ppm | 8pF | -20°C ~ 70°C |
| 416F27022CKR | CTS-Frequency Controls | 416 | 27MHz | ±20ppm | 8pF | -20°C ~ 70°C |
| 416F27022CKR | CTS-Frequency Controls | 416 | 27MHz | ±20ppm | 8pF | -20°C ~ 70°C |
| 416F48022CKR | CTS-Frequency Controls | 416 | 48MHz | ±20ppm | 8pF | -20°C ~ 70°C |
| 416F48022CKR | CTS-Frequency Controls | 416 | 48MHz | ±20ppm | 8pF | -20°C ~ 70°C |
| 416F48022CKR | CTS-Frequency Controls | 416 | 48MHz | ±20ppm | 8pF | -20°C ~ 70°C |
| 416F52022CKR | CTS-Frequency Controls | 416 | 52MHz | ±20ppm | 8pF | -20°C ~ 70°C |
| 416F52022CKR | CTS-Frequency Controls | 416 | 52MHz | ±20ppm | 8pF | -20°C ~ 70°C |
| 416F52022CKR | CTS-Frequency Controls | 416 | 52MHz | ±20ppm | 8pF | -20°C ~ 70°C |
| 416F24022IKR | CTS-Frequency Controls | 416 | 24MHz | ±20ppm | 8pF | -40°C ~ 85°C |
| 416F24022IKR | CTS-Frequency Controls | 416 | 24MHz | ±20ppm | 8pF | -40°C ~ 85°C |
| 416F24022IKR | CTS-Frequency Controls | 416 | 24MHz | ±20ppm | 8pF | -40°C ~ 85°C |
| 416F32022IKR | CTS-Frequency Controls | 416 | 32MHz | ±20ppm | 8pF | -40°C ~ 85°C |
| 416F32022IKR | CTS-Frequency Controls | 416 | 32MHz | ±20ppm | 8pF | -40°C ~ 85°C |
| 416F32022IKR | CTS-Frequency Controls | 416 | 32MHz | ±20ppm | 8pF | -40°C ~ 85°C |
| 416F48022IKR | CTS-Frequency Controls | 416 | 48MHz | ±20ppm | 8pF | -40°C ~ 85°C |
| 416F48022IKR | CTS-Frequency Controls | 416 | 48MHz | ±20ppm | 8pF | -40°C ~ 85°C |
| 416F48022IKR | CTS-Frequency Controls | 416 | 48MHz | ±20ppm | 8pF | -40°C ~ 85°C |
| 416F52022IKR | CTS-Frequency Controls | 416 | 52MHz | ±20ppm | 8pF | -40°C ~ 85°C |
