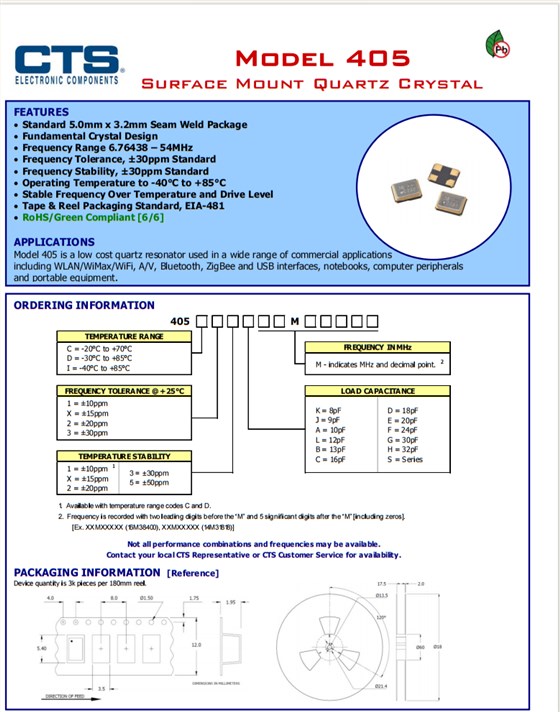

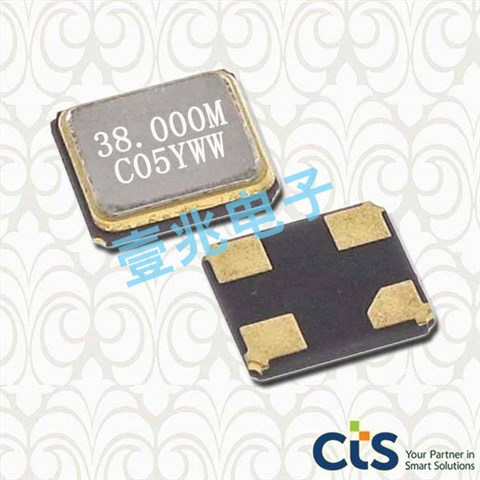

405C35B16M00000,CTS晶振,5032贴片晶振，编码：405C35B16M00000，型号：405系列晶振，工作温度：-20°C ~ 70°C，尺寸：5.0*3.2mm，频率：16MHz，负载电容：13pF，精度：±30ppm，贴片石英晶体，CTS贴片晶振，美国进口晶振，标准5.0毫米x 3.2mm毫米缝焊组件基本晶体设计频率范围6.76438–54 MHz 频率容差，30ppm标准频率稳定性，30ppm标准工作温度为-40℃至+85℃ 温度和驱动电平下的稳定频率胶带和卷轴包装标准，EIA-481，405型是一种低成本石英谐振器，广泛应用于商业领域包括WLAN/WiMax/WiFi、A/V、蓝牙、ZigBee和USB接口、笔记本电脑、计算机外围设备和便携式设备。

405C35B16M00000,CTS晶振,5032贴片晶振，参数表

PARAMETER

VALUE

Frequency Range

6.76438MHz to 54MHz

Operating Mode

Fundamental

Crystal Cut

AT-Cut

Frequency Tolerance @ +25°C

±30ppm, Standard

Frequency Stability Tolerance
[Operating Temperature Range, Referenced to +25°C Reading]

±30ppm, Standard

Operating Temperature Ranges

-20°C to +70°C

-30°C to +85°C

-40°C to +85°C

Equivalent Series Resistance[Maximum]

6.76438MHz - <11MHz

80 Ohms

11MHz - <15MHz

60 Ohms

15MHz - <35MHz

50 Ohms

35MHz - 54MHz

40 Ohms

Load Capacitance

See Ordering Information

Shunt Capacitance[C0]

5.0pF Typical, 7.0pF Maximum

Drive Level

10µW Typ., 200µW Max.

Aging @ +25°C

±3ppm/yr Typical

Insulation Resistance

500M Ohms @ DC 100V

Storage Temperature Range

-40°C to +100°C

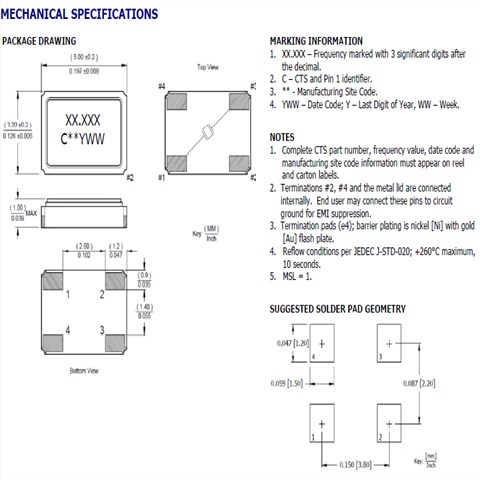

405C35B16M00000,CTS晶振,5032贴片晶振，尺寸图

Manufacturer Part Number原厂编码	晶振厂家	Series型号	Frequency	Frequency Stability频率稳定度	Frequency Tolerance频率偏差	Load Capacitance负载电容	ESR (Equivalent Series Resistance)电阻	Operating Temperature工作温度
405C35B16M00000	CTS-Frequency Controls	405	16MHz	±50ppm	±30ppm	13pF	60 Ohm	-20°C ~ 70°C
405C35B16M00000	CTS-Frequency Controls	405	16MHz	±50ppm	±30ppm	13pF	60 Ohm	-20°C ~ 70°C
405C35B16M00000	CTS-Frequency Controls	405	16MHz	±50ppm	±30ppm	13pF	60 Ohm	-20°C ~ 70°C
405I35D12M00000	CTS-Frequency Controls	405	12MHz	±50ppm	±30ppm	18pF	60 Ohm	-40°C ~ 85°C
405I35D12M00000	CTS-Frequency Controls	405	12MHz	±50ppm	±30ppm	18pF	60 Ohm	-40°C ~ 85°C
405I35D12M00000	CTS-Frequency Controls	405	12MHz	±50ppm	±30ppm	18pF	60 Ohm	-40°C ~ 85°C
405C35B25M00000	CTS-Frequency Controls	405	25MHz	±50ppm	±30ppm	13pF	50 Ohm	-20°C ~ 70°C
405C35B25M00000	CTS-Frequency Controls	405	25MHz	±50ppm	±30ppm	13pF	50 Ohm	-20°C ~ 70°C
405C35B25M00000	CTS-Frequency Controls	405	25MHz	±50ppm	±30ppm	13pF	50 Ohm	-20°C ~ 70°C
405I35D25M00000	CTS-Frequency Controls	405	25MHz	±50ppm	±30ppm	18pF	50 Ohm	-40°C ~ 85°C
405I35D25M00000	CTS-Frequency Controls	405	25MHz	±50ppm	±30ppm	18pF	50 Ohm	-40°C ~ 85°C
405I35D25M00000	CTS-Frequency Controls	405	25MHz	±50ppm	±30ppm	18pF	50 Ohm	-40°C ~ 85°C
405C35D12M00000	CTS-Frequency Controls	405	12MHz	±50ppm	±30ppm	18pF	80 Ohm	-20°C ~ 70°C
405C35D12M00000	CTS-Frequency Controls	405	12MHz	±50ppm	±30ppm	18pF	80 Ohm	-20°C ~ 70°C
405C35D12M00000	CTS-Frequency Controls	405	12MHz	±50ppm	±30ppm	18pF	80 Ohm	-20°C ~ 70°C
405C35B12M00000	CTS-Frequency Controls	405	12MHz	±50ppm	±30ppm	13pF	60 Ohm	-20°C ~ 70°C
405C35B12M00000	CTS-Frequency Controls	405	12MHz	±50ppm	±30ppm	13pF	60 Ohm	-20°C ~ 70°C
405C35B12M00000	CTS-Frequency Controls	405	12MHz	±50ppm	±30ppm	13pF	60 Ohm	-20°C ~ 70°C
405C35B24M00000	CTS-Frequency Controls	405	24MHz	±50ppm	±30ppm	13pF	50 Ohm	-20°C ~ 70°C
405C35B24M00000	CTS-Frequency Controls	405	24MHz	±50ppm	±30ppm	13pF	50 Ohm	-20°C ~ 70°C
405C35B24M00000	CTS-Frequency Controls	405	24MHz	±50ppm	±30ppm	13pF	50 Ohm	-20°C ~ 70°C
405C35D27M00000	CTS-Frequency Controls	405	27MHz	±50ppm	±30ppm	18pF	50 Ohm	-20°C ~ 70°C
405C35D27M00000	CTS-Frequency Controls	405	27MHz	±50ppm	±30ppm	18pF	50 Ohm	-20°C ~ 70°C
405C35D27M00000	CTS-Frequency Controls	405	27MHz	±50ppm	±30ppm	18pF	50 Ohm	-20°C ~ 70°C
405C35B16M36800	CTS-Frequency Controls	405	16.368MHz	±50ppm	±30ppm	13pF	60 Ohm	-20°C ~ 70°C
