2520贴片晶体,CFPX-218谐振器,LFXTAL069395RL3K

2520贴片晶体,CFPX-218谐振器,LFXTAL069395RL3K，英国进口晶振，无源贴片晶体，编码：LFXTAL069395RL3K，型号：CFPX-218，工作温度：-40℃ ~ 85°C，尺寸：2.5mm*2.0mm，频率：16.384 MHz，精度：±20ppm，负载电容：10pF，贴片石英晶体，晶体谐振器，石英晶体晶振，SMD晶体，石英晶振，2520进口晶振，密封的标准2.5 x 2mm SMD晶体，带有接缝密封金属盖的陶瓷包装。2520mm体积的晶振,可以说是目前小型数码产品的福音,目前超小型的智能手机里面所应用的就是小型的石英晶振,该产品最适用于无线通讯系统,无线局域网。

2520贴片晶体,CFPX-218谐振器,LFXTAL069395RL3K，参数表

编码	LFXTAL069395RL3K
品牌	IQD
型号	CFPX-218
频率	16.384 MHz
精度	±20ppm
负载电容	10pF
工作温度	-40℃ ~ 85°C
尺寸	2.5mm*2.0mm

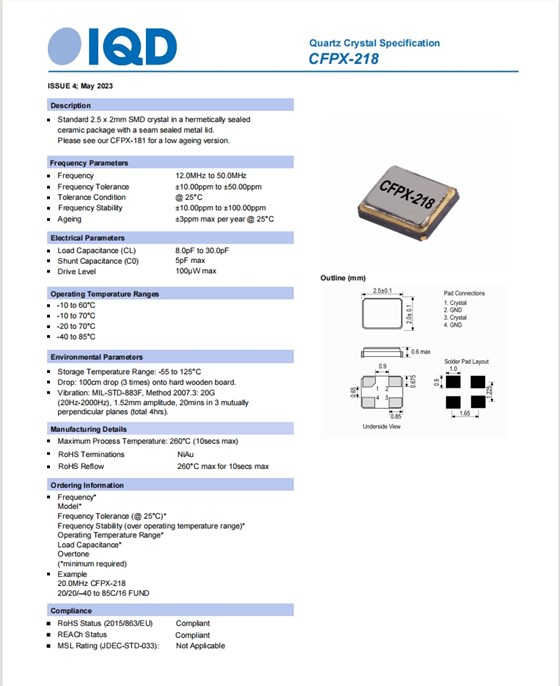

2520贴片晶体,CFPX-218谐振器,LFXTAL069395RL3K，尺寸图

Mfr Part #	进口晶振2520	Series	Frequency	Frequency Tolerance	Load Capacitance	Operating Temperature
LFXTAL069395RL3K	IQD Frequency Products	CFPX-218	16.384 MHz	±20ppm	10pF	-40°C ~ 85°C
LFXTAL069383REEL	IQD Frequency Products	CFPX-218	24 MHz	±20ppm	10pF	-40°C ~ 85°C
LFXTAL063334REEL	IQD Frequency Products	CFPX-218	25 MHz	±20ppm	10pF	-40°C ~ 85°C
LFXTAL069405REEL	IQD Frequency Products	CFPX-218	27 MHz	±20ppm	18pF	-40°C ~ 85°C
LFXTAL069392REEL	IQD Frequency Products	CFPX-218	16 MHz	±20ppm	10pF	-40°C ~ 85°C
LFXTAL068297REEL	IQD Frequency Products	CFPX-218	16 MHz	±10ppm	8pF	-20°C ~ 75°C
LFXTAL069407REEL	IQD Frequency Products	CFPX-218	30 MHz	±20ppm	10pF	-40°C ~ 85°C
LFXTAL082082CUTT	IQD Frequency Products	CFPX-218	24 MHz	±10ppm	10pF	-20°C ~ 70°C
LFXTAL069381REEL	IQD Frequency Products	CFPX-218	20 MHz	±20ppm	10pF	-40°C ~ 85°C
LFXTAL071952RL3K	IQD Frequency Products	CFPX-218	12 MHz	±20ppm	10pF	-40°C ~ 85°C
LFXTAL081865RL3K	IQD Frequency Products	CFPX-218	26 MHz	±10ppm	10pF	-20°C ~ 70°C
LFXTAL082080RL3K	IQD Frequency Products	CFPX-218	19.2 MHz	±10ppm	10pF	-20°C ~ 70°C
LFXTAL078207RL3K	IQD Frequency Products	CFPX-218	32 MHz	±10ppm	10pF	-20°C ~ 70°C
LFXTAL072844RL3K	IQD Frequency Products	CFPX-218	30 MHz	±10ppm	10pF	-20°C ~ 70°C
LFXTAL082084RL3K	IQD Frequency Products	CFPX-218	-	±10ppm	10pF	-20°C ~ 70°C
LFXTAL082081RL3K	IQD Frequency Products	CFPX-218	-	±10ppm	10pF	-20°C ~ 70°C
LFXTAL078719RL3K	IQD Frequency Products	CFPX-218	-	±10ppm	10pF	-20°C ~ 70°C
LFXTAL082082RL3K	IQD Frequency Products	CFPX-218	24 MHz	±10ppm	10pF	-20°C ~ 70°C
LFXTAL082087RL3K	IQD Frequency Products	CFPX-218	40 MHz	±10ppm	10pF	-20°C ~ 70°C
LFXTAL082088RL3K	IQD Frequency Products	CFPX-218	50 MHz	±10ppm	10pF	-20°C ~ 70°C
LFXTAL069400REEL	IQD Frequency Products	CFPX-218	18.432 MHz	±20ppm	18pF	-40°C ~ 85°C
LFXTAL050991REEL	IQD Frequency Products	CFPX-218	26 MHz	±20ppm	10pF	-40°C ~ 85°C
LFXTAL069387REEL	IQD Frequency Products	CFPX-218	24.576 MHz	±20ppm	10pF	-40°C ~ 85°C
LFXTAL069390REEL	IQD Frequency Products	CFPX-218	32 MHz	±20ppm	10pF	-40°C ~ 85°C
LFXTAL069404REEL	IQD Frequency Products	CFPX-218	19.2 MHz	±20ppm	10pF	-40°C ~ 85°C
LFXTAL071952REEL	IQD Frequency Products	CFPX-218	12 MHz	±20ppm	10pF	-40°C ~ 85°C
LFXTAL082084CUTT	IQD Frequency Products	CFPX-218	27 MHz	±10ppm	10pF	-20°C ~ 70°C
LFXTAL082087CUTT	IQD Frequency Products	CFPX-218	40 MHz	±10ppm	10pF	-20°C ~ 70°C
LFXTAL082081CUTT	IQD Frequency Products	CFPX-218	20 MHz	±10ppm	10pF	-20°C ~ 70°C
LFXTAL078207REEL	IQD Frequency Products	CFPX-218	32 MHz	±10ppm	10pF	-20°C ~ 70°C
LFXTAL081865CUTT	IQD Frequency Products	CFPX-218	26 MHz	±10ppm	10pF	-20°C ~ 70°C
LFXTAL082088CUTT	IQD Frequency Products	CFPX-218	50 MHz	±10ppm	10pF	-20°C ~ 70°C
