AKER差分石英晶体,S73305-20.000-X-15-R,7050晶振

AKER差分石英晶体,S73305-20.000-X-15-R,7050晶振，台产晶振，编码：S73305-20.000-X-15-R，型号：S7，工作温度：-40°C ~ 85°C，尺寸：7.0*5.0mm，频率：20MHz，精度：±50ppm，电压：3.3V，电流：7mA，输出方式：HCMOS，差分输出晶体振荡器，有源7050贴片晶振，进口贴片晶体振荡器，时钟晶体振荡器，差分晶振具有低电平，低抖动，低功耗、相衰减，低相噪，低相位、精密稳定等特性。差分晶振低电压的特征，普遍用于对于高速网络要求，适用于：超速光纤收发器、网路咯路由器、光纤通信，网络交换机、千兆网、串行ATA、SCSI、高端服务器、电脑周边、SDH、SONET、广播服务、移动通信、基站、网络设备等。

AKER差分石英晶体,S73305-20.000-X-15-R,7050晶振，参数表

编码	S73305-20.000-X-15-R
品牌	AKER
型号	S7
频率	20MHz
精度	±50ppm
电压	3.3V
电流	7mA
工作温度	-40C ~ 85°C
输出方式	HCMOS
尺寸	7.0*5.0mm

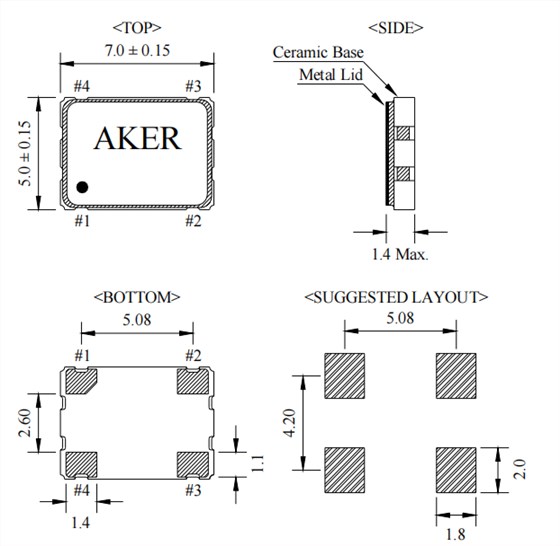

AKER差分石英晶体,S73305-20.000-X-15-R,7050晶振，尺寸图

Mfr Part #	时钟晶体振荡器	Series	Type	Frequency	Output	Voltage - Supply	Frequency Stability	Operating Temperature	Current - Supply (Max)
S2M025T-24.000-X-R	Aker Technology Corp	S2	XO (Standard)	24 MHz	HCMOS	1.62V ~ 3.63V	±25ppm	-40°C ~ 85°C	12mA
S73305-20.000-X-15-R	Aker Technology Corp	S7	XO (Standard)	20 MHz	HCMOS	3.3V	±50ppm	-40°C ~ 85°C	7mA
S73305T-25.000-R	Aker Technology Corp	S7	XO (Standard)	25 MHz	HCMOS	3.3V	±50ppm	-20°C ~ 70°C	7mA
S73305T-25.000-X-15-R	Aker Technology Corp	S7	XO (Standard)	25 MHz	HCMOS	3.3V	±50ppm	-40°C ~ 85°C	7mA
S733025T-25.000-15-R	Aker Technology Corp	S7	XO (Standard)	25 MHz	HCMOS	3.3V	±25ppm	-20°C ~ 70°C	7mA
S73305T-32.000-R	Aker Technology Corp	S7	XO (Standard)	32 MHz	HCMOS	3.3V	±50ppm	-20°C ~ 70°C	7mA
S73305T-11.2896-X-30-R	Aker Technology Corp	S7	XO (Standard)	11.2896 MHz	HCMOS	3.3V	±50ppm	-40°C ~ 85°C	7mA
S73305T-50.000-X-R	Aker Technology Corp	S7	XO (Standard)	50 MHz	HCMOS	3.3V	±50ppm	-40°C ~ 85°C	12mA
S533025T-25.000-R	Aker Technology Corp	S5	XO (Standard)	25 MHz	HCMOS	3.3V	±25ppm	-20°C ~ 70°C	12mA
S73310-60.000-X-15-R	Aker Technology Corp	S7	XO (Standard)	60 MHz	HCMOS	3.3V	±100ppm	-40°C ~ 85°C	25mA
S3M025T-8.000-R	Aker Technology Corp	S3	XO (Standard)	8 MHz	HCMOS	1.62V ~ 3.63V	±25ppm	-20°C ~ 70°C	7mA
S3M05T-8.000-R	Aker Technology Corp	S3	XO (Standard)	8 MHz	HCMOS	1.62V ~ 3.63V	±50ppm	-20°C ~ 70°C	7mA
S333025T-25.000-X-R	Aker Technology Corp	S3	XO (Standard)	25 MHz	HCMOS	3.3V	±25ppm	-40°C ~ 85°C	12mA
S533025T-25.000-X-R	Aker Technology Corp	S5	XO (Standard)	25 MHz	HCMOS	3.3V	±25ppm	-40°C ~ 85°C	12mA
S325025T-25.000-X-R	Aker Technology Corp	S3	XO (Standard)	25 MHz	HCMOS	2.5V	±25ppm	-40°C ~ 85°C	8mA
S218025T-24.000-R	Aker Technology Corp	S2	XO (Standard)	24 MHz	HCMOS	1.8V	±25ppm	-20°C ~ 70°C	5mA
S2M05T-24.000-R	Aker Technology Corp	S2	XO (Standard)	24 MHz	HCMOS	1.62V ~ 3.63V	±50ppm	-20°C ~ 70°C	12mA
S23305T-50.000-R	Aker Technology Corp	S2	XO (Standard)	50 MHz	HCMOS	3.3V	±50ppm	-20°C ~ 70°C	20mA
S233025T-25.000-R	Aker Technology Corp	S2	XO (Standard)	25 MHz	HCMOS	3.3V	±25ppm	-20°C ~ 70°C	12mA
S23305T-26.000-R	Aker Technology Corp	S2	XO (Standard)	26 MHz	HCMOS	3.3V	±50ppm	-20°C ~ 70°C	12mA
S23305T-50.000-X-R	Aker Technology Corp	S2	XO (Standard)	50 MHz	HCMOS	3.3V	±50ppm	-40°C ~ 85°C	20mA
S2M025T-25.000-X-R	Aker Technology Corp	S2	XO (Standard)	25 MHz	HCMOS	1.62V ~ 3.63V	±25ppm	-40°C ~ 85°C	12mA
S73305T-125.000-R	Aker Technology Corp	S7	XO (Standard)	125 MHz	HCMOS	3.3V	±50ppm	-20°C ~ 70°C	30mA
S53305T-125.000-X-R	Aker Technology Corp	S5	XO (Standard)	125 MHz	HCMOS	3.3V	±50ppm	-40°C ~ 85°C	40mA
S11805T-25.000-X1-R	Aker Technology Corp	S1 X1	XO (Standard)	25 MHz	CMOS	1.8V	±50ppm	-40°C ~ 85°C	5mA
